|   MEMS Accelerometer Testing Station   |
   (Sale Unit SU75-04)


CONDITION

This In-house built Test Station is part of test equipment of a MEMS Research Lab. It consists of a dividing head with its rotational axis horizontal. The accelrometer chip under development is mounted on the face of the dividing head, with accelerometer input axis perpendicular to the rotational axis. A motor can rotate the dividing head in steps of a few arc seconds; thus, applying only a fractional component of gravity to the accelerometer input.
A PC is used for driving the dividing head, and recording the accelerometer output for modelling and calibration. (The PC has Data acquisition Card, Dividing Head with Stepper Motor Controller.)

It is available for inspection by appointments

Pricing negotiable. Make Offers.

EQUIPMENT PHOTOS

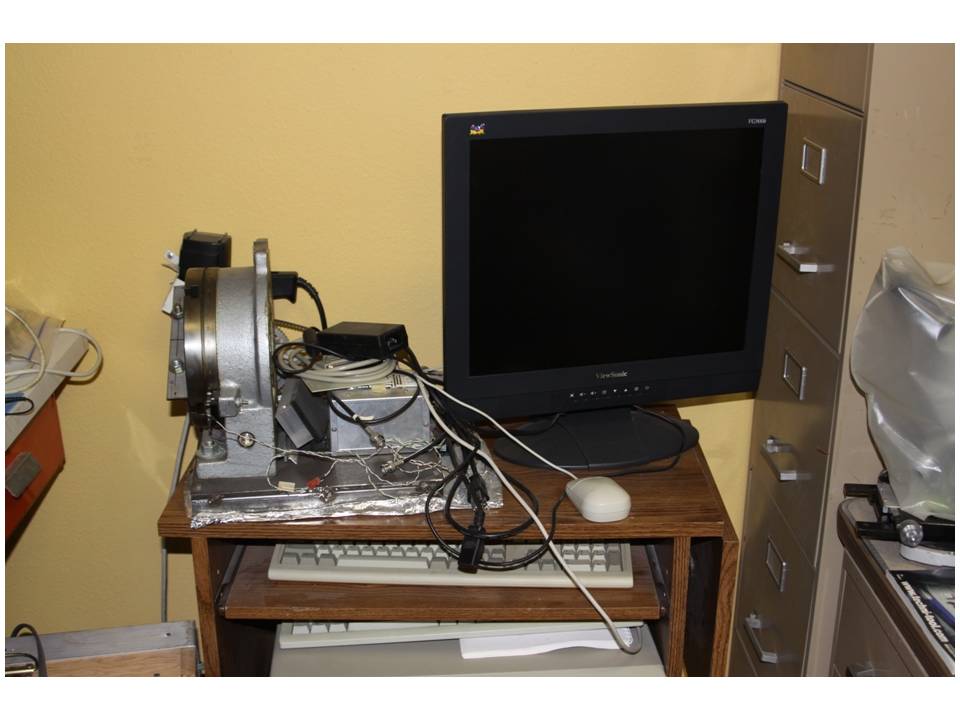

A Portable Test Station

SINGLE

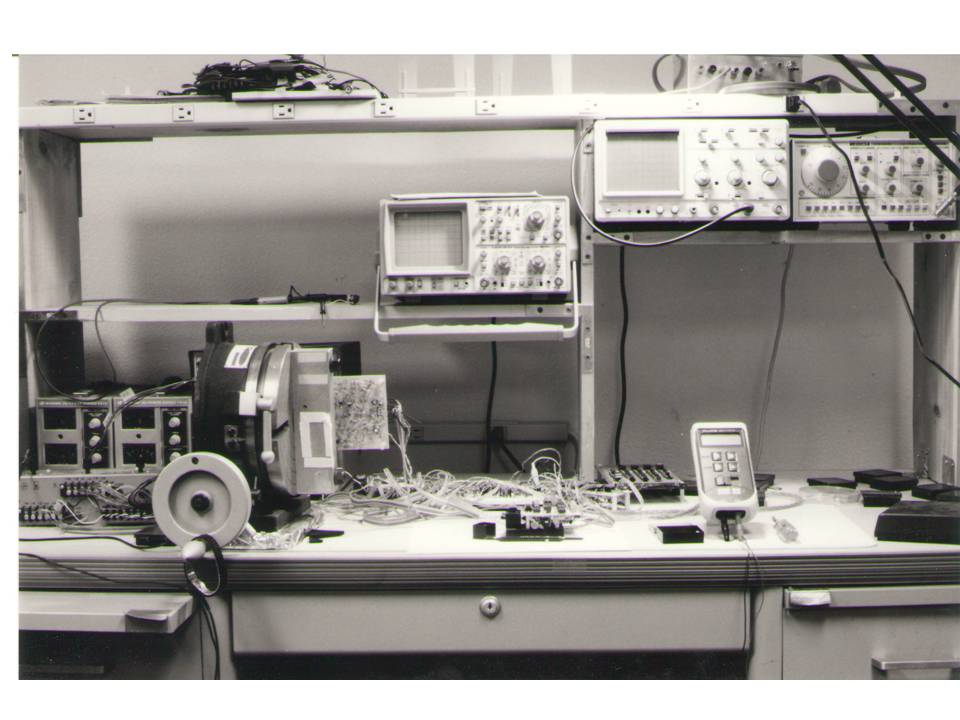

Dividing Head With Accel Servo Breadboard.

SINGLE

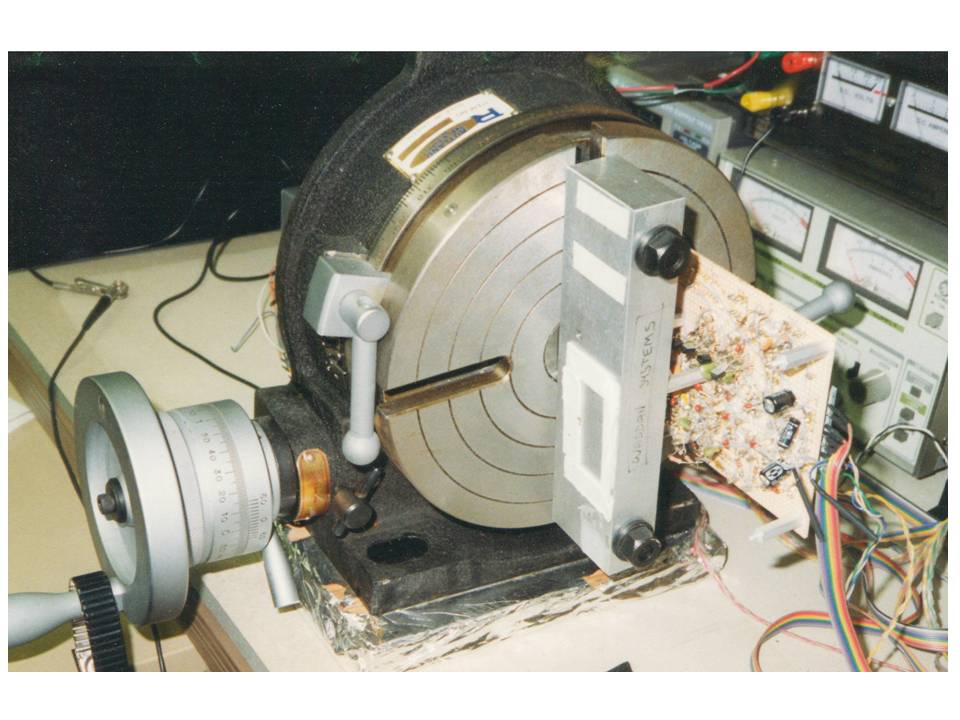

Dividing Head on a Desk with a Manual Hand Wheel for Rotation

SINGLE

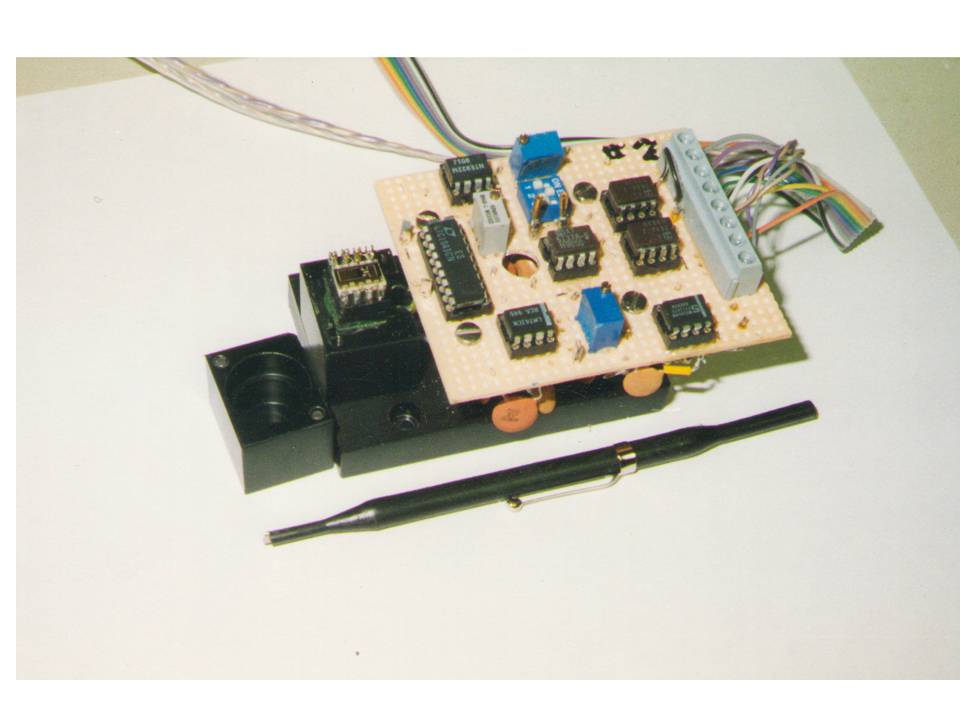

Accel with Servo Board on a Mounting Fixture.

SINGLE
