A MICRO/NANO SENSORS & SYSTEMS COMPANY
|   Wafer Aligners Single/Double Sided Proximity Printing Chuck on Shock Table; (1 µm Resolution)   |

|   Currently configured for 3" wafers using 4” square mask plates   |
|   (Can be reconfigured for 4” wafers)  |
   (Sale Unit SU71-12)


CONDITION

Well maintained Fully Operating Semiconductor Wafer aligners. Both aligners are on a MEMS Research Lab floor. Each is mounted on its shock table under its respective HEPA Filter Hood. Refurbished and Customized by Seller.

Aligner # 1:

  CONFIGURATION OF THIS ALIGNER INCLUDE
  (This unit is dedicated to Negative Photoresist Coated wafers)
  Base unit Kasper Model 2001-C
   Conventional 4" Glass Mask Holder
   Proximity Printing Chuck
   Shock Table
   Binocular Microscope
   IR Electrophysics Camera Model 7290
   350 W UV lamp & P/S
   HEPA Filter Covering Hood

  This unit is CUSTOMIZED FOR
  Single Sided Photolithography
       Conventional lithography for alignment with respect to a pattern on top side of the wafer;
       A Binocular Microscope is mounted on the Aligner
  Double Sided Photolithography
       In this lithography pattern on the wafer top side is aligned with respect to a pattern on bottom side of the wafer;
       An IR Camera is mounted on the Aligner
  Wafer-to-Wafer Alignment
       In this two wafers with pattern, facing each other are aligned with respect to each other;
       A Binocular Microscope is mounted on the Aligner
       A custom fixture with vacuum hold keeps the upper wafer (with pattern facing down)in the place of a conventional mask



Aligner # 2:

  CONFIGURATION OF THIS ALIGNER INCLUDE
  (This unit is dedicated to Positive Photoresist Coated wafers)
  Base unit Kasper Model 2001-C
   Conventional 4" Glass Mask Holder
   Can also hold 4" flexible polyester mask (Black and White) films
   Proximity Printing Chuck
   Shock Table
   Binocular Microscope
   The Aligner # 1 IR Electrophysics Camera Model 7290 can also be used
   350 W UV lamp & P/S
   HEPA Filter Covering Hood

  This unit is CUSTOMIZED FOR
  Single Sided Photolithography
       Conventional lithography for alignment with respect to a pattern on top side of the wafer;
       A Binocular Microscope is mounted on the Aligner
  Optional Double Sided Photolithography
       In this lithography pattern on the wafer top side is aligned with respect to a pattern on bottom side of the wafer;
       An IR Camera is mounted on the Aligner
  Optional Wafer-to-Wafer Alignment
       In this two wafers with pattern, facing each other are aligned with respect to each other;
       A Binocular Microscope is mounted on the Aligner
       A custom fixture with vacuum hold keeps the upper wafer (with pattern facing down)in the place of a conventional mask

Description

Aligners are ideal for R&D and small lot production work.

Perfect for a startup or university with technical staff skills to take some technical responsibility and save money over buying new.

Both aligners are fully operational.

Spares: (separately priced)

   A Oriel/Newport 350 W UV lamp & P/S
   Two Backup Power Supplies for UV lamps
   Assorted parts for maintaining Kasper 2001

Aligners are available for inspection by appointments

Pricing negotiable. Make Offers.

EQUIPMENT PHOTOS

Aligner # 1

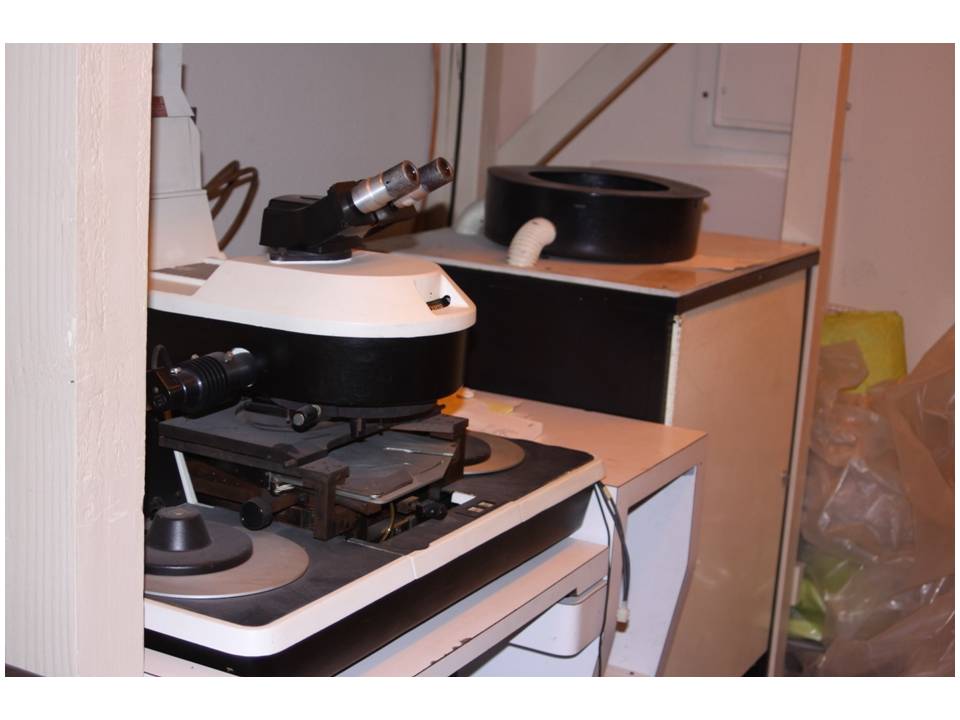

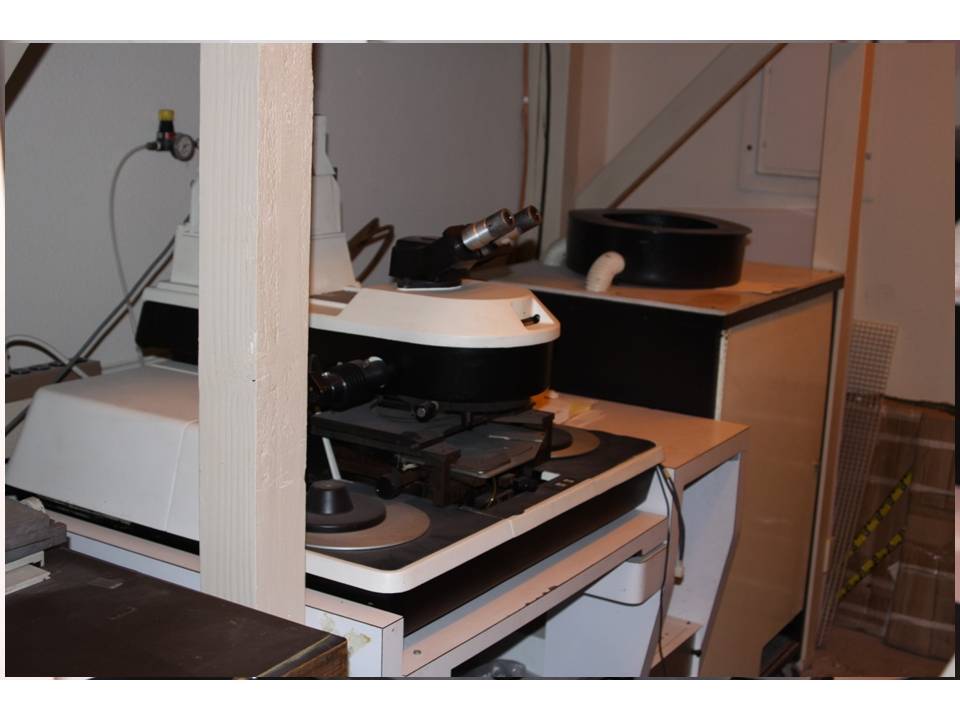

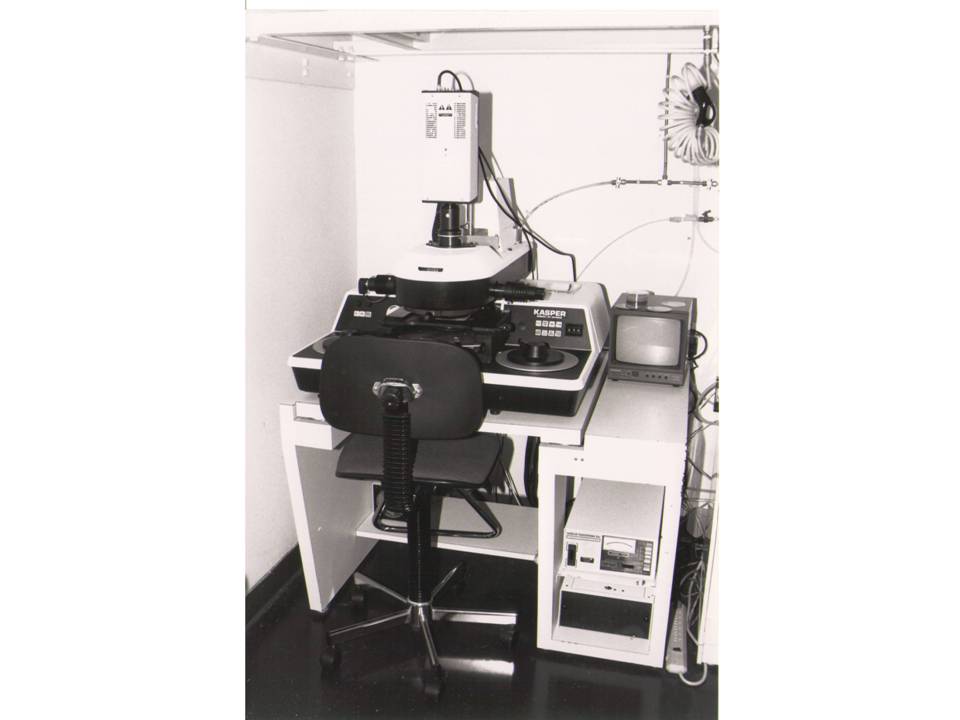

Aligner with IR Camera

SINGLE

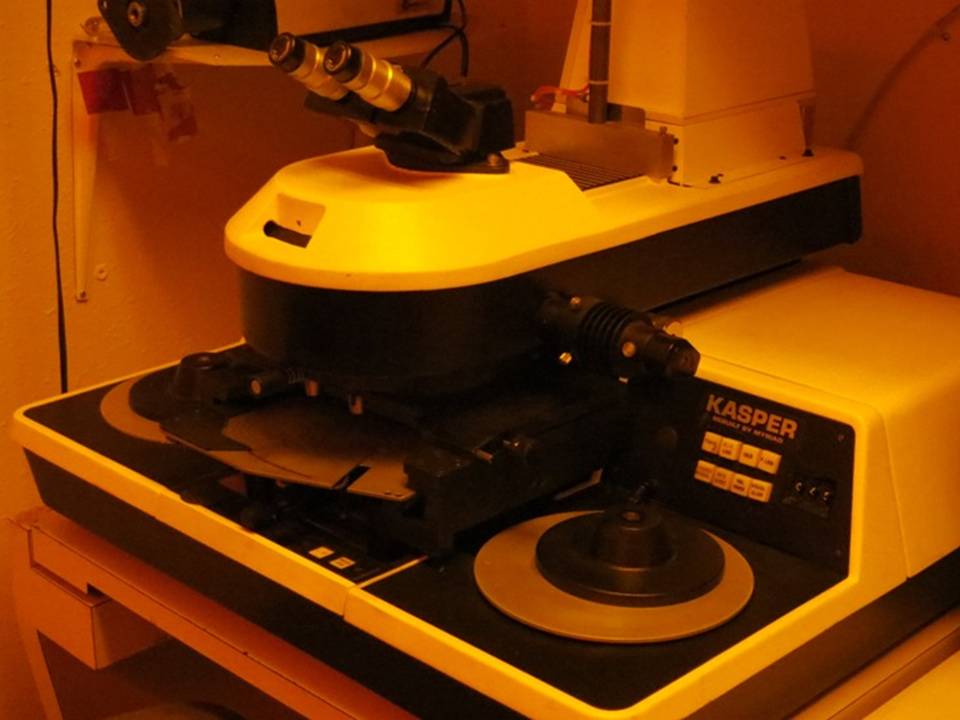

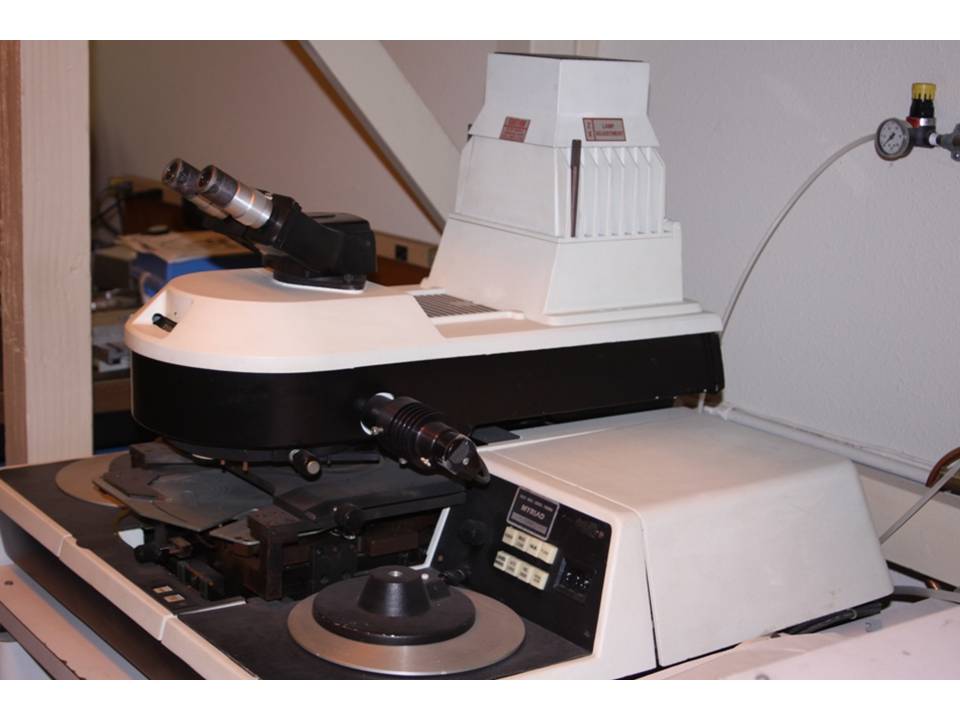

Aligner with Binocular Microscope

SINGLE

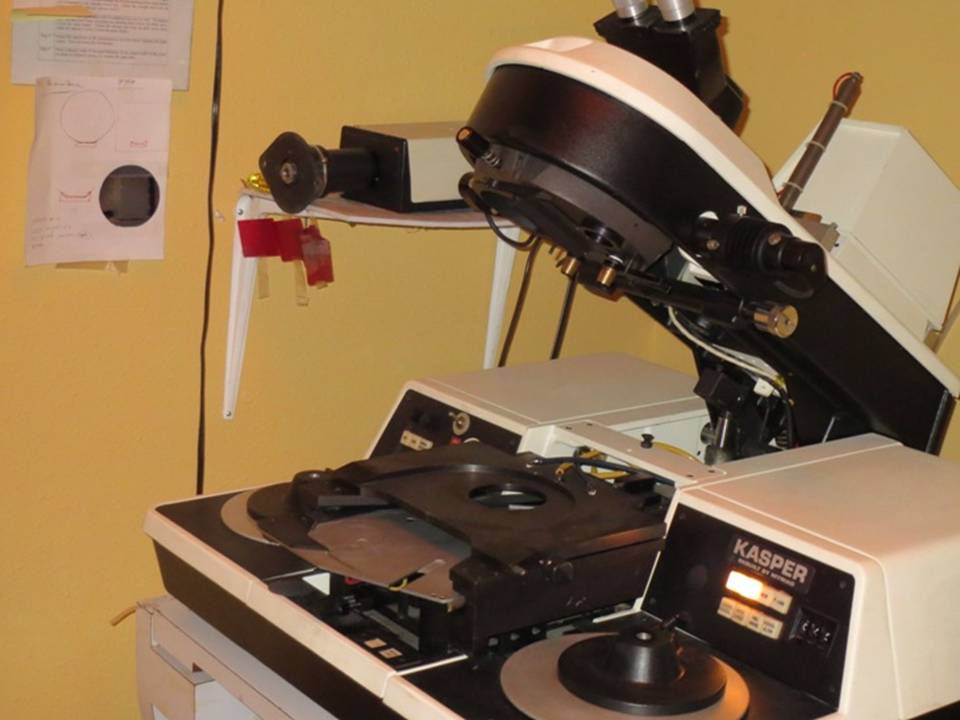

Arm Raised View

SINGLE

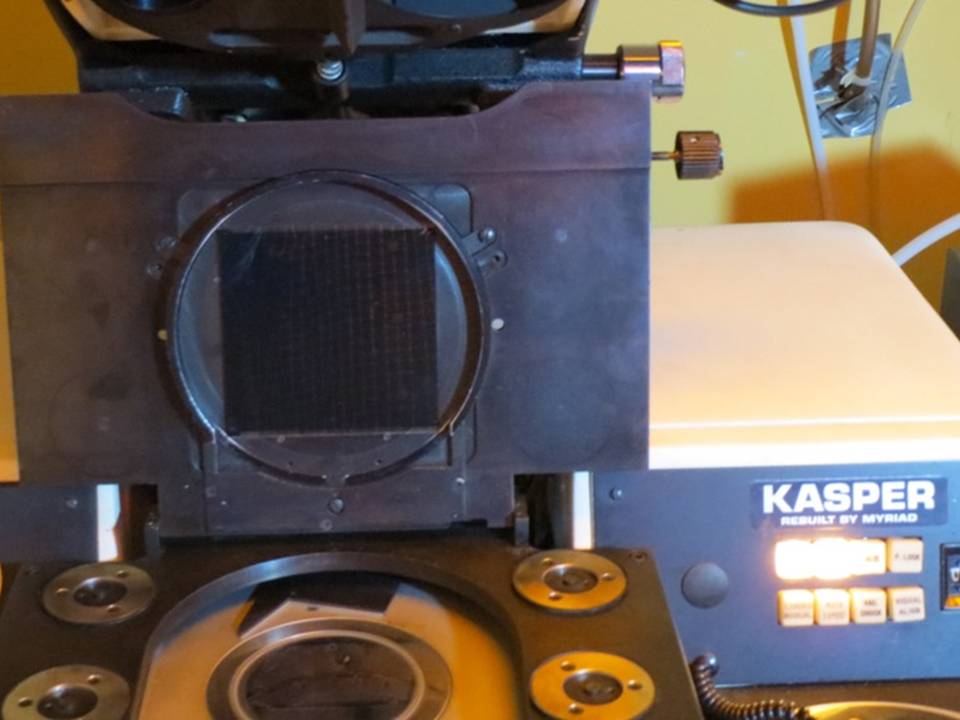

Mask Holder with Switches

SINGLE

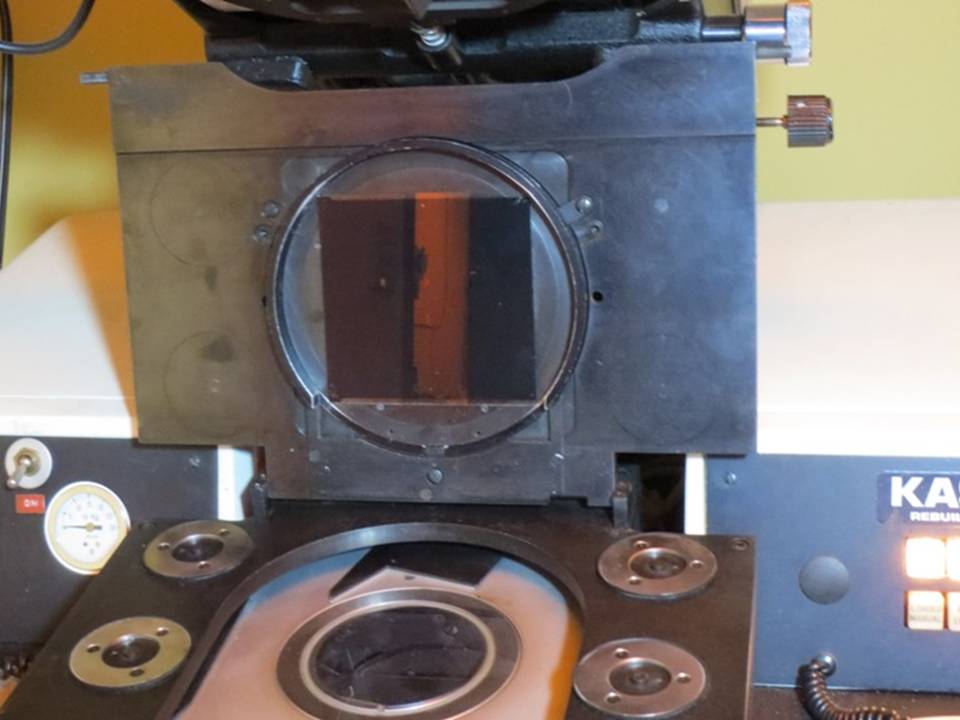

Mask Holder with Mask in Place

SINGLE

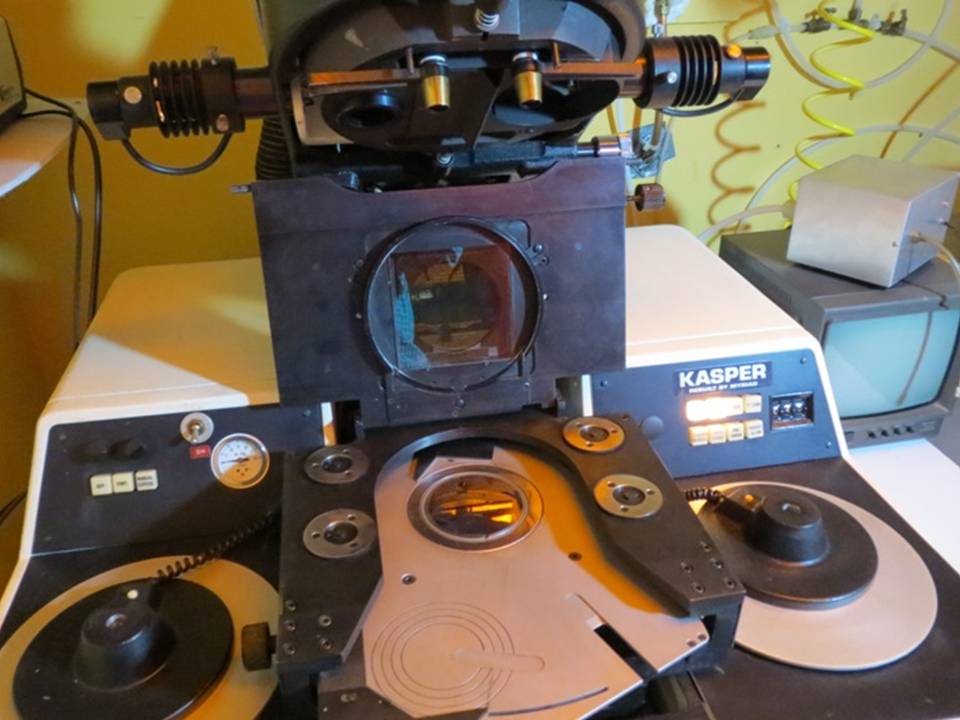

Front View with Arm Raised

SINGLE



Front View Arm Raised

SINGLE

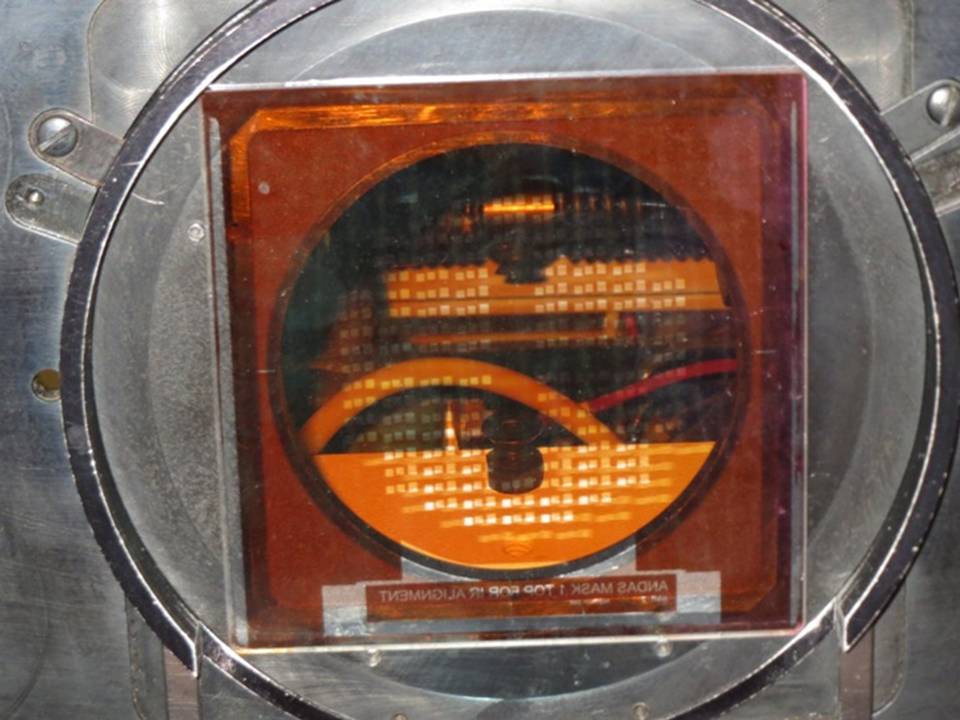

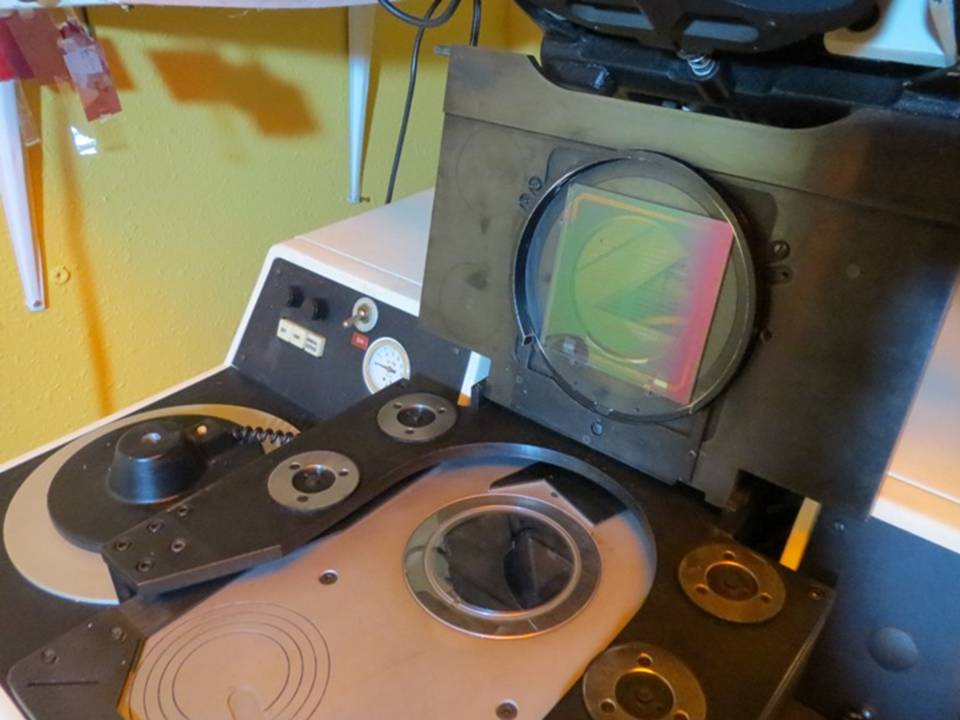

Mask Holder with Iron Oxide Mask

SINGLE

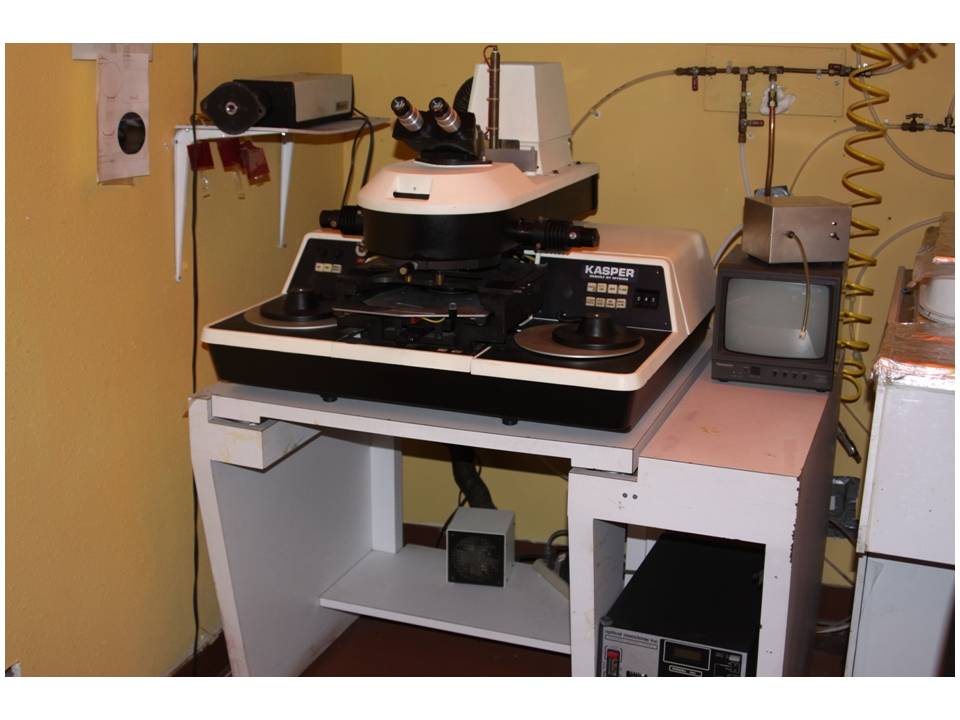

Front View with wafer-to-wafer alignmnet control box placed on the Monitor View 1

SINGLE

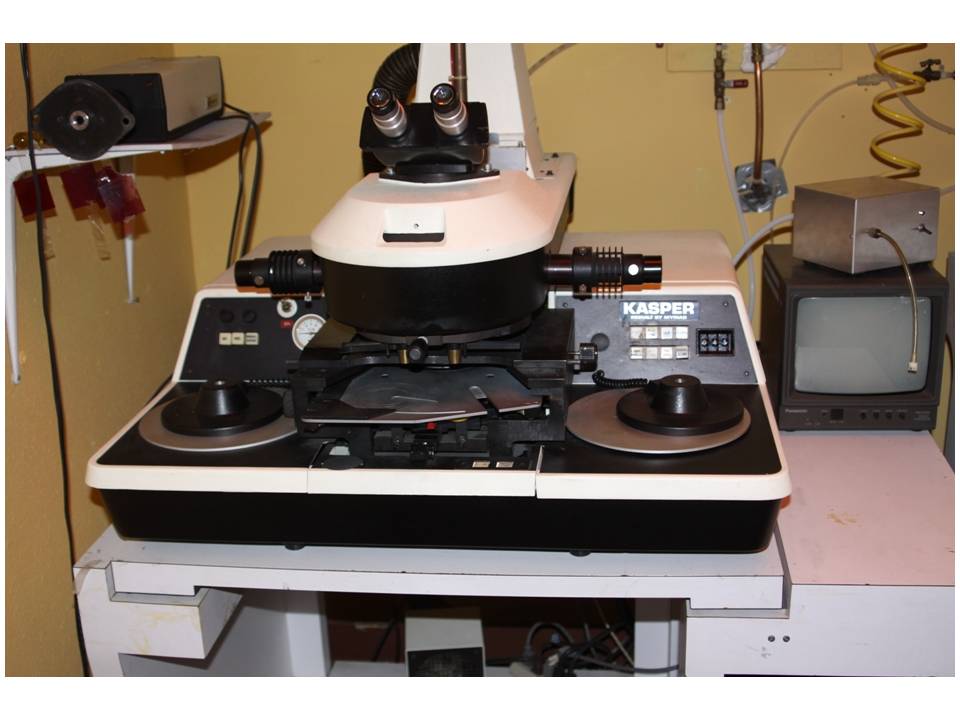

Front View with wafer-to-wafer alignmnet control box placed on the Monitor View 2

SINGLE

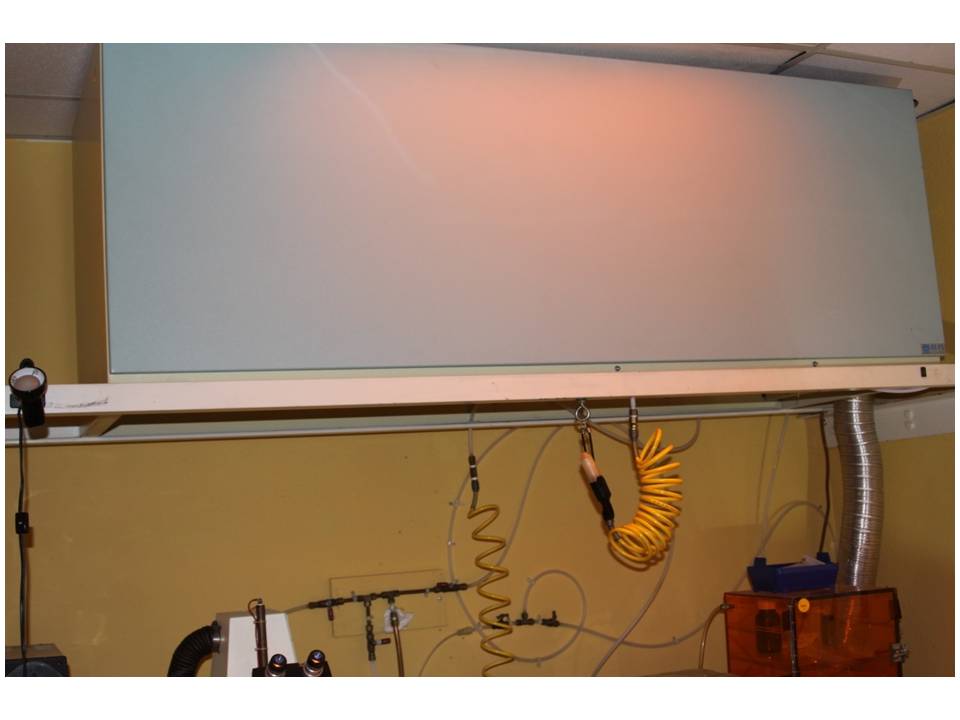

HEPA Filter Hood

SINGLE

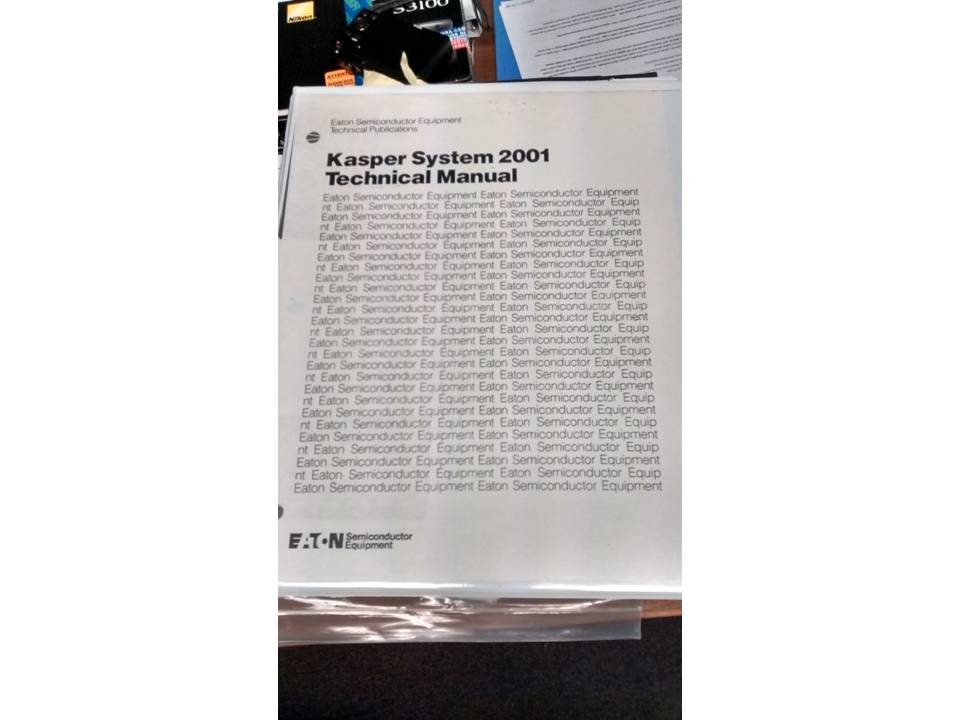

Kasper 2001 Manual

SINGLE





Aligner # 2

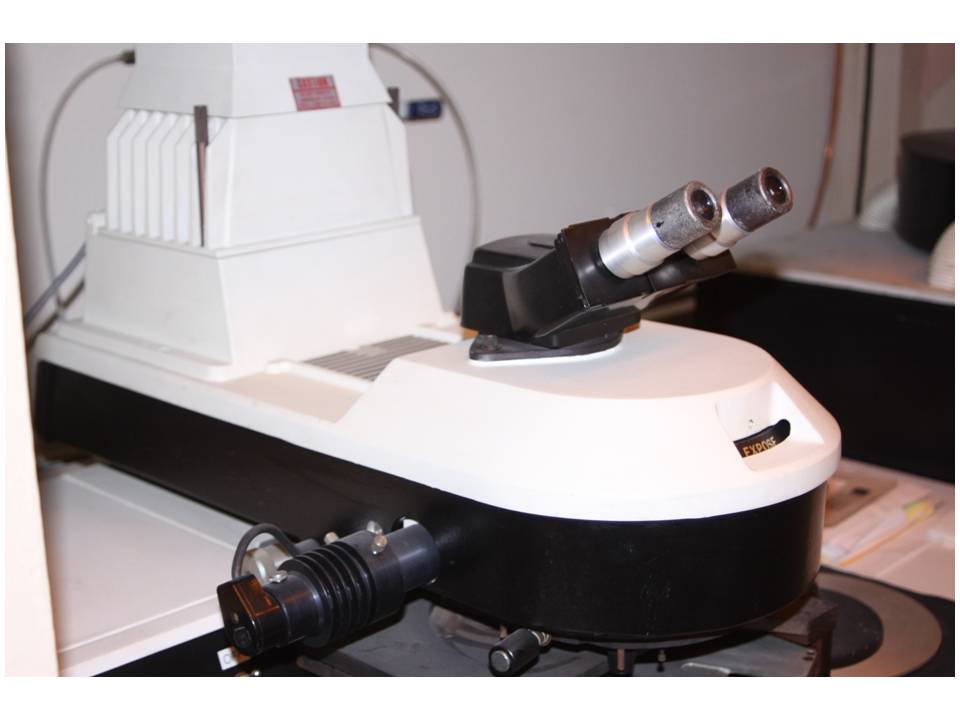

Aligner with Binocular Microscope View 1

SINGLE



Aligner with Binocular Microscope View 2

SINGLE



Aligner with Headway Research Spin Coater View 1

SINGLE



Aligner with Headway Research Spin Coater View 2

SINGLE

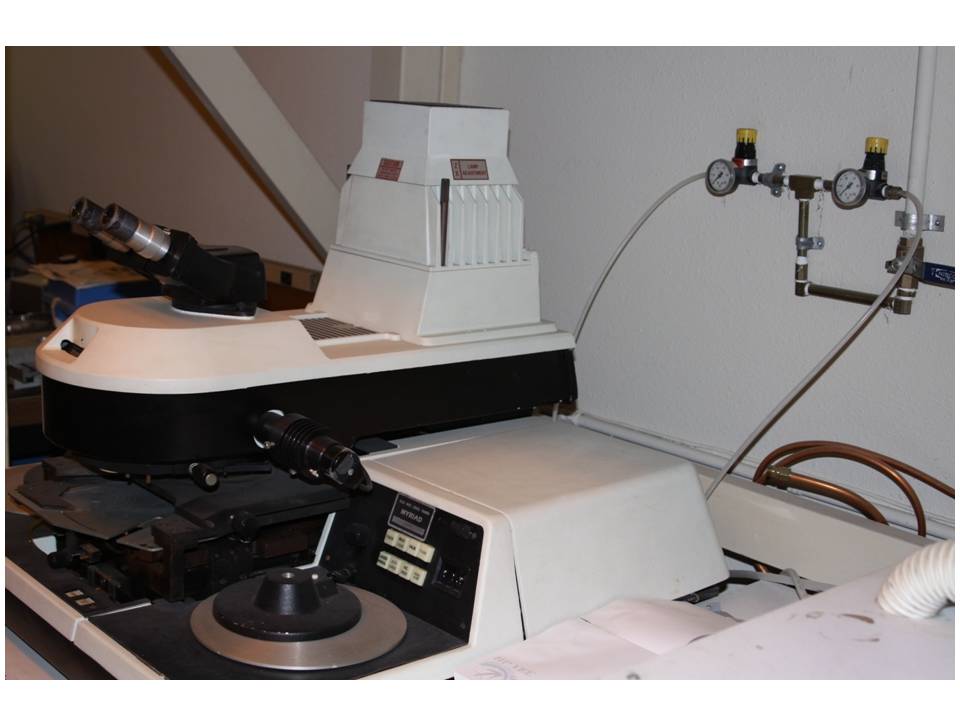

Aligner with Two Compressed Air Regulators

SINGLE
