|   Anodic Bonding Manual Station (Glass/Si/Glass)   |
   (Sale Unit SU72-08)


CONDITION

This is an in-house assembled wafer bonding equipment for bonding a stack of Pyrx:Silicon:Pyrex wafers. This is a part of desktop equipment in a MEMS Research Lab. Specially machined Titanium electrodes are employed to hold the wafer stack in place. The elctrodes are electrically shorted to be at the same voltage. The corner-cut design of the electrodes allows a small part of the silicon to extend outside the flats in Pyrex wafers. The positive end of DC high voltage is connected to Silicon, and the negative end is connected to the electrodes (Pyrex).

Features

  Power Requirement: 115 VAC, 50/60Hz
  High Voltage HP 6522A Power Supply
  Electrode Heating via a hot plate
  Dead weight is applied for maintaining uniform Pressure between the wafers


Perfect for a startup or university with technical skills to take some technical responsibility and save money over buying new.

It is available for inspection by appointments

Pricing negotiable. Make Offers.

EQUIPMENT PHOTOS

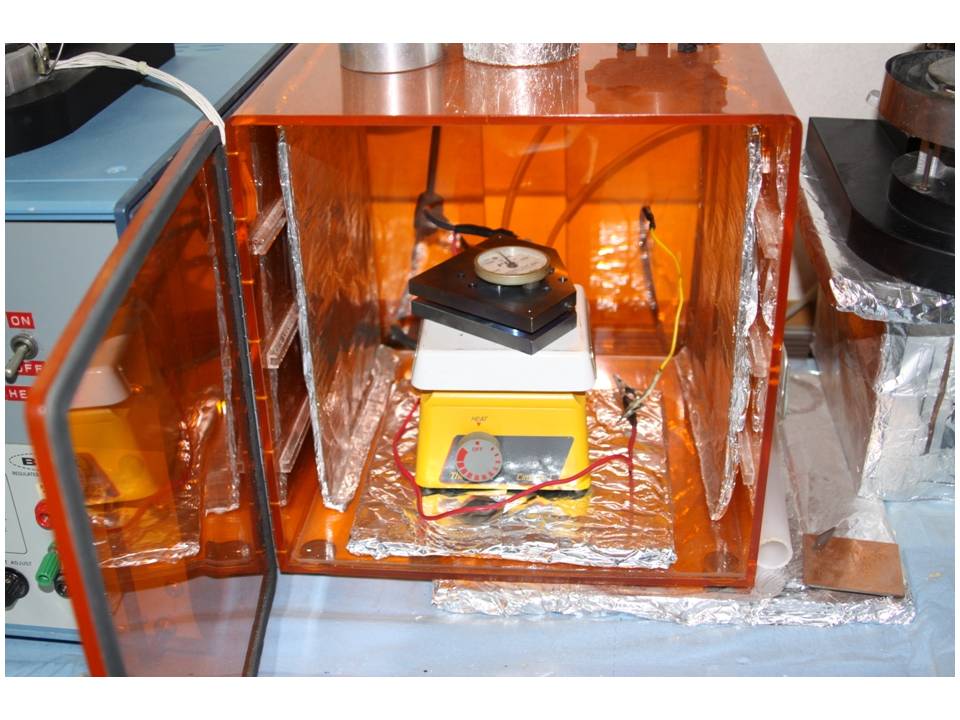

Bonding in Progress inside an Inert Gas Enclosure

SINGLE

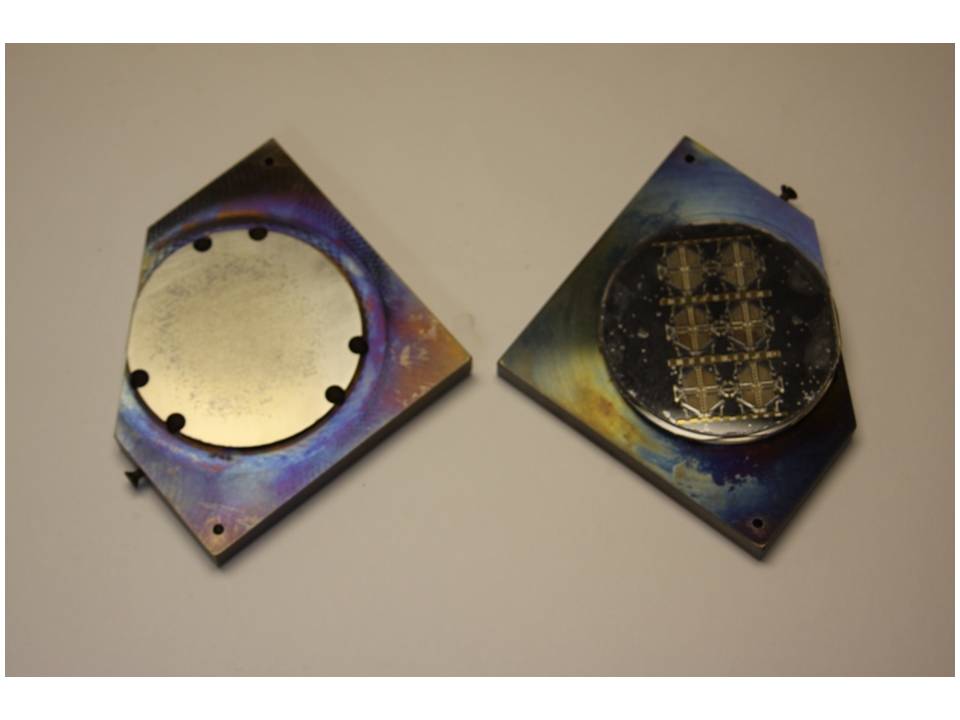

Titanium Electrodes (Wafer Stack is on the Right Side Electrode)

SINGLE

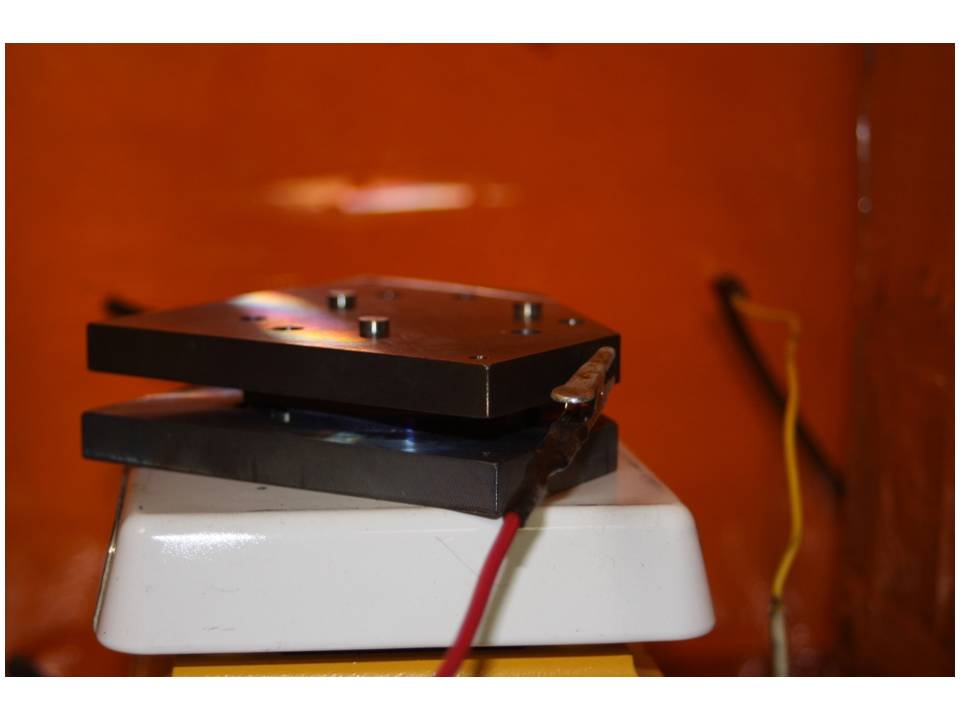

Electrical Interface with Electrode

SINGLE

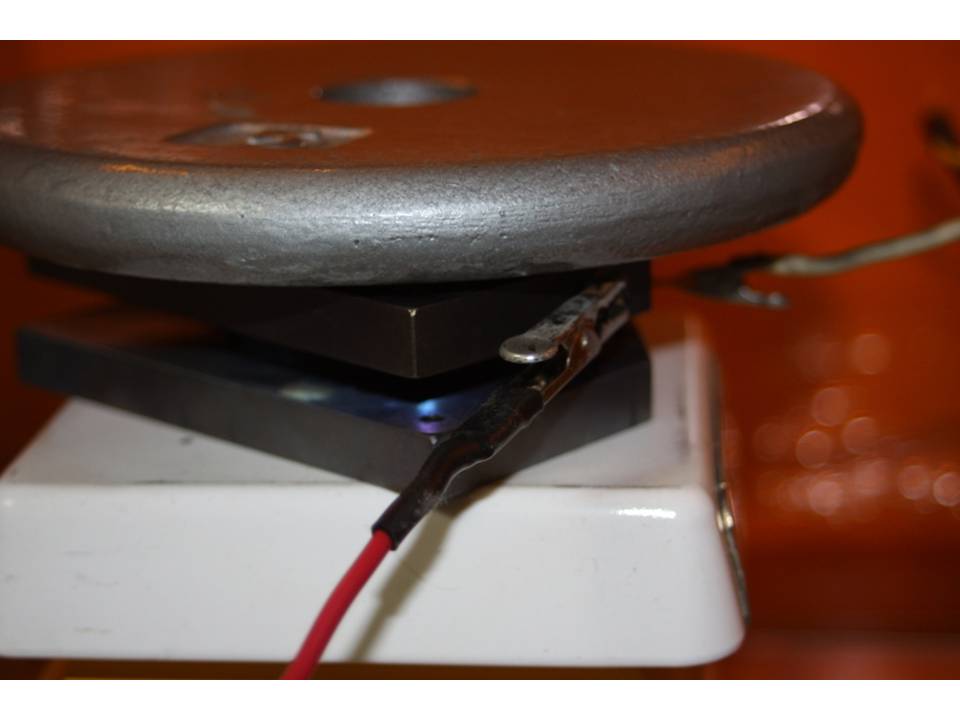

Dead Weight on Electrodes

SINGLE



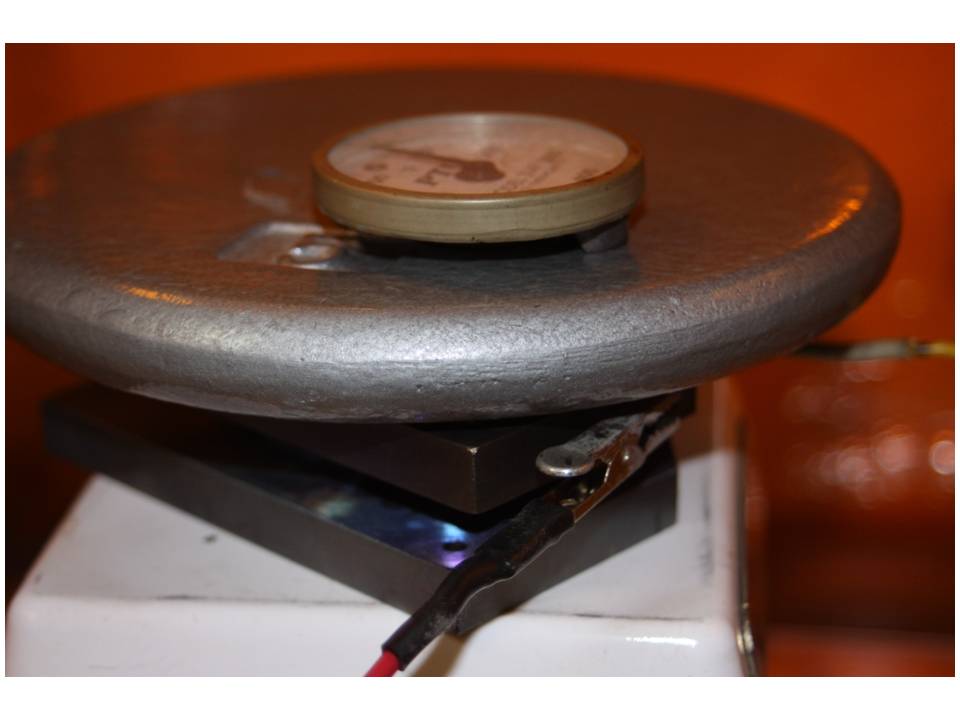

Electrical interface with Electrode and Silicon

SINGLE

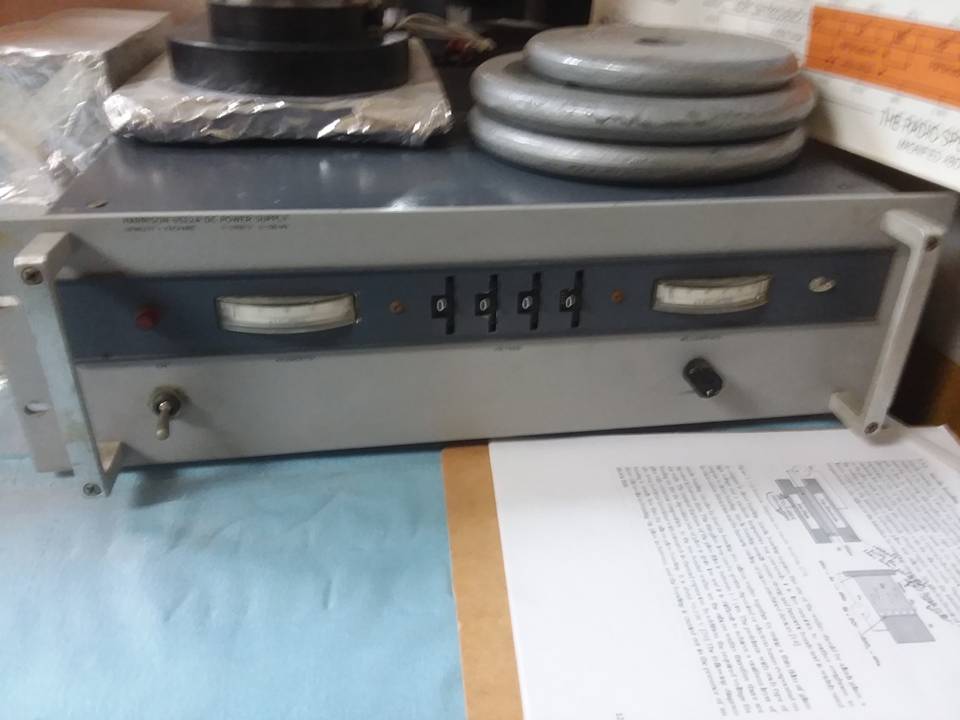

HP 6522A High Voltage P/S (0-2000 VDC, 0-100 mA)

SINGLE

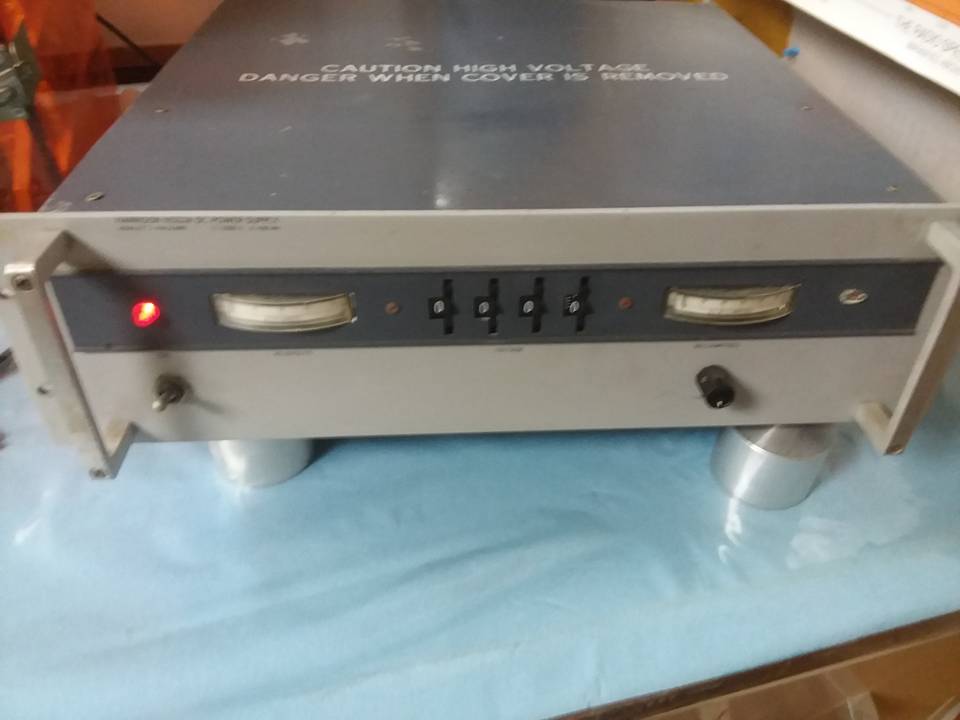

Power Supply Turned ON View 1

SINGLE

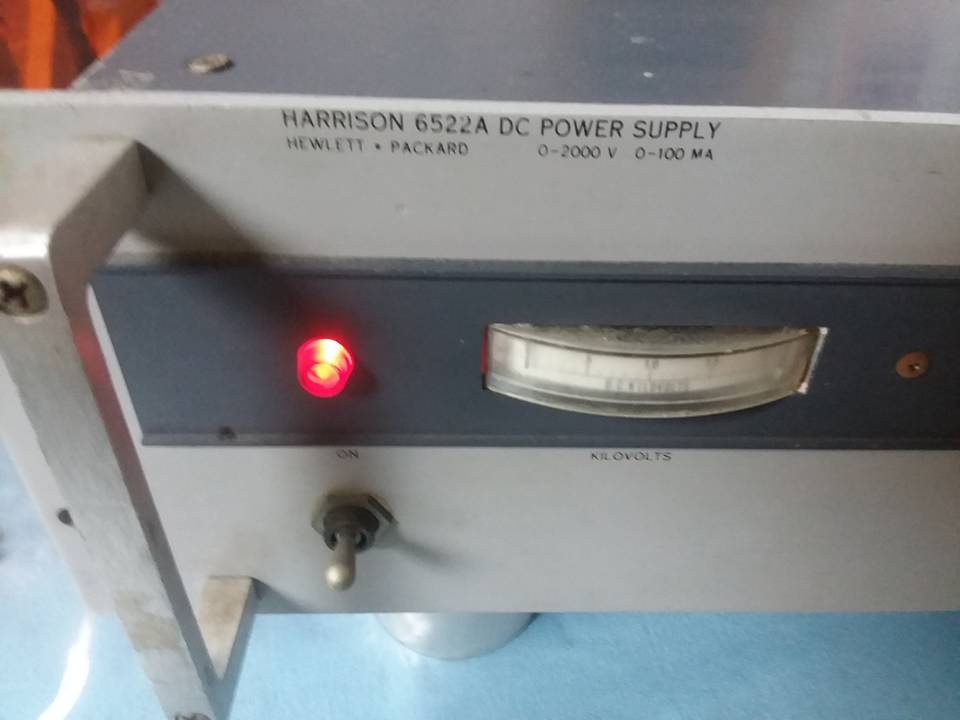

Power Supply Turned ON View 2

SINGLE

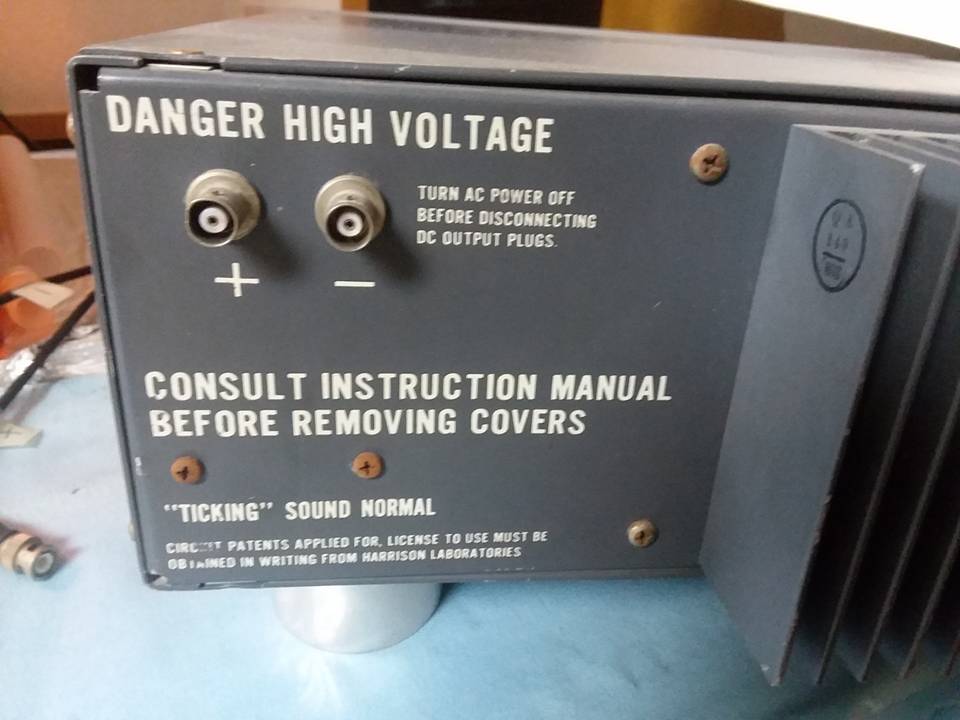

High Voltage Output Terminals on the Back of the P/S

SINGLE

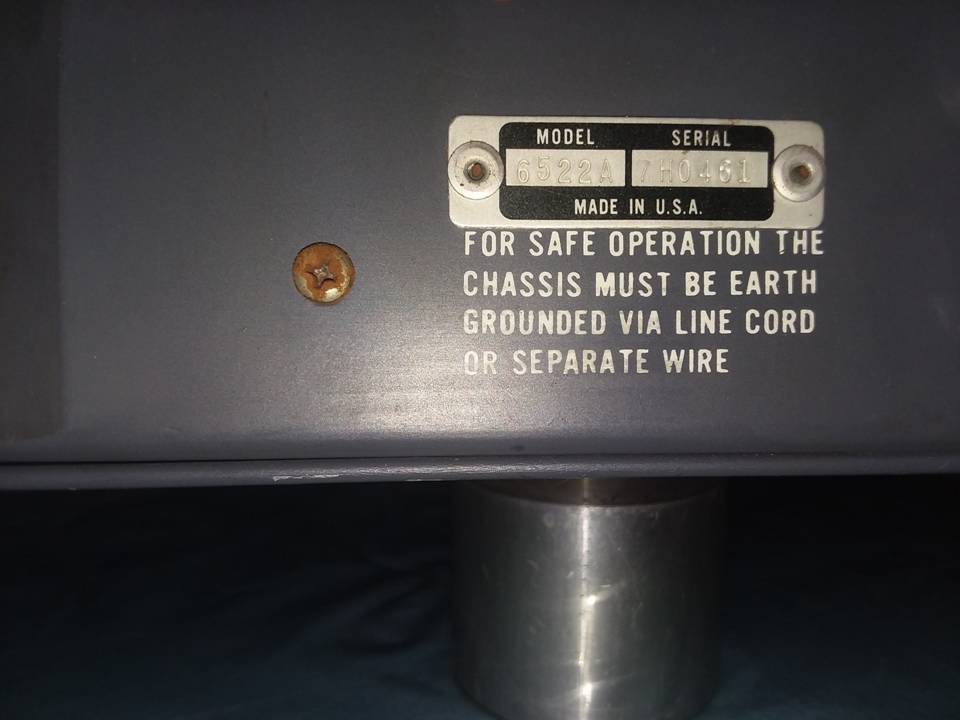

Manufacturer's Label on P/S

SINGLE
