|   Tegal PLASMOD 100 W Plasma Reactor/Asher/Etcher   |
   (Sale Unit SU72-02)


CONDITION

This is one of the Desktop processing equipment of a MEMS Research Lab. As a used equipment, it shows some blemishes due to frequent handling, otherwise it is fully operational.

Description

The Tegal Plasmod is a general purpose O2 plasma asher, used for general purpose cleaning or to remove photoresist. It incorporates RF as the plasma source and is typically used at 300-400 mT. It has a high selectivity to resist and an overall low removal rate.
Instruction Manual is includ.

Allowed Materials

Si, Ge, C, GaAs and its compounds, InP and its compounds, cleaned SiO2 (glass), and cleaned Al2O3 (sapphire).

Prohibited Materials

Indium, tin, zinc, iron, and organics.

Features

  The Actual Chamber Size is about 6" deep and 4.5" internal diameter
  The Actual Holder Size is about 5.75" deep and 4" internal diameter
  120 V, 50/60 Hz
  0-100W RF Power @ 13.56 MHz

Typical applications:

  Cleaning for wire bonding, die attach process
  SEM/TEM sample cleaning for hydrocarbon contamination removal
  Surface treat before biomedical coating and improve hydrophilicity of medical implants
  Optics, glass and substrate cleaning before epoxy bonding
  Photoresist ashing, descum and silicon wafer cleaning
  PDMS, microfluidics, glass slides and lab-on-a-chip
  Improve bonding for metal to metal or composite
  Improve bonding for plastic, polymer and composite materials
  Medical device activation, sterilization and improve coating adhesion

Perfect for a startup or university with technical skills to take some technical responsibility and save money over buying new.

It is available for inspection by appointments

Pricing negotiable. Make Offers.

EQUIPMENT PHOTOS

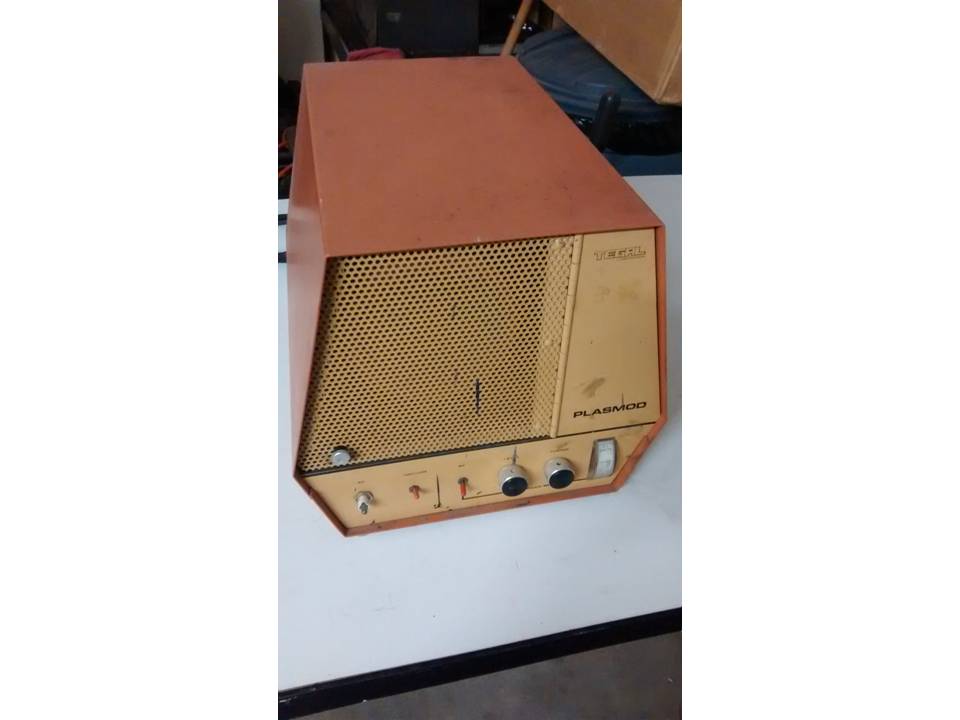

Front View

SINGLE

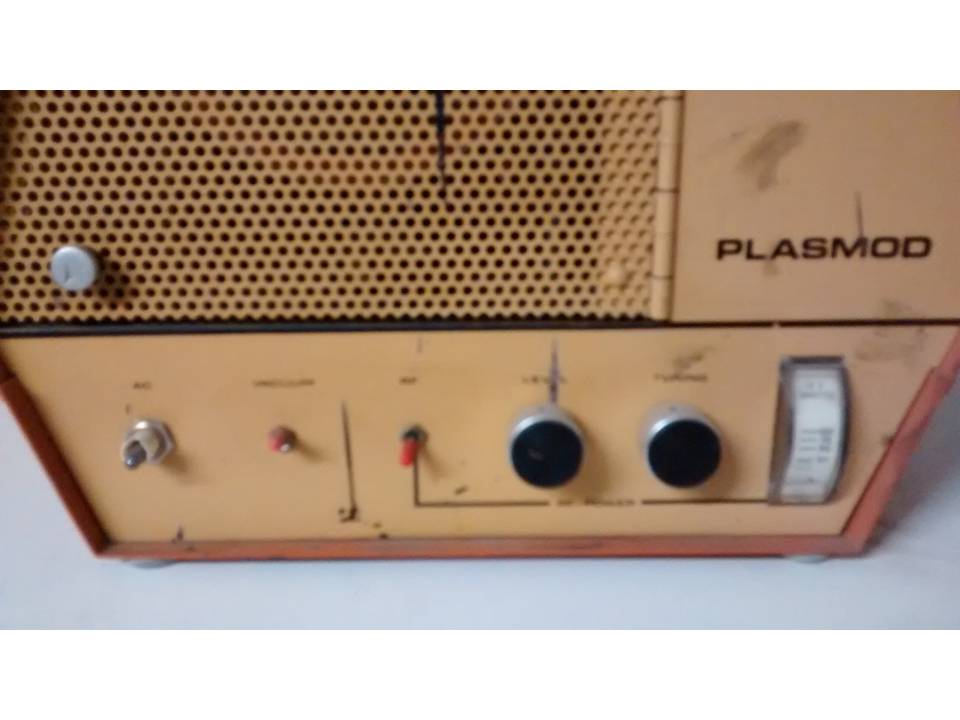

Front View Close Up of Controls

SINGLE

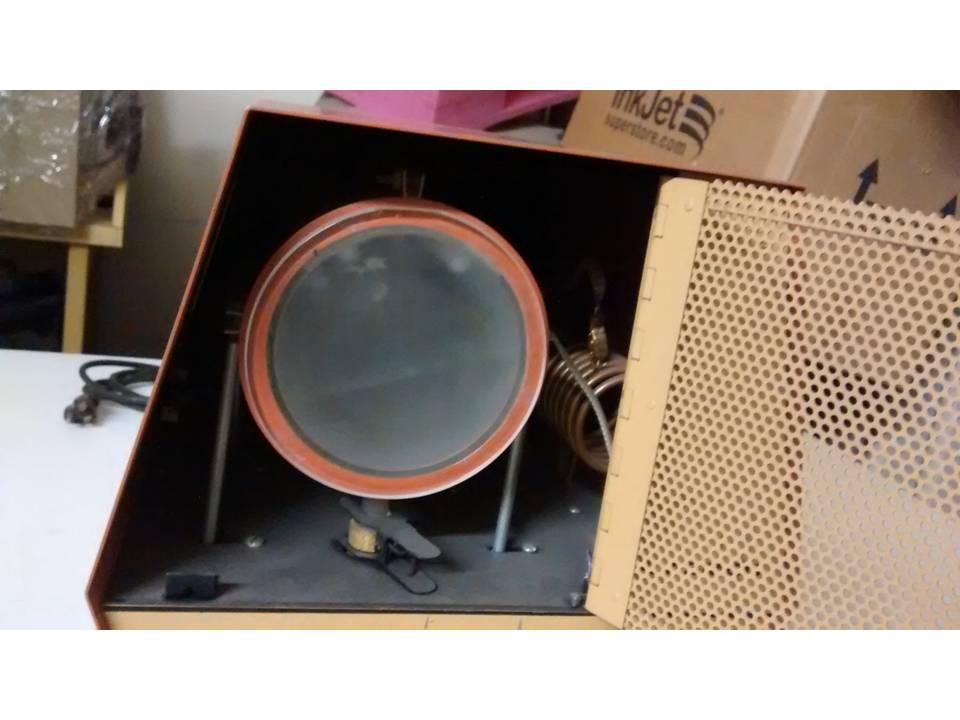

Process Tube Chamber

SINGLE

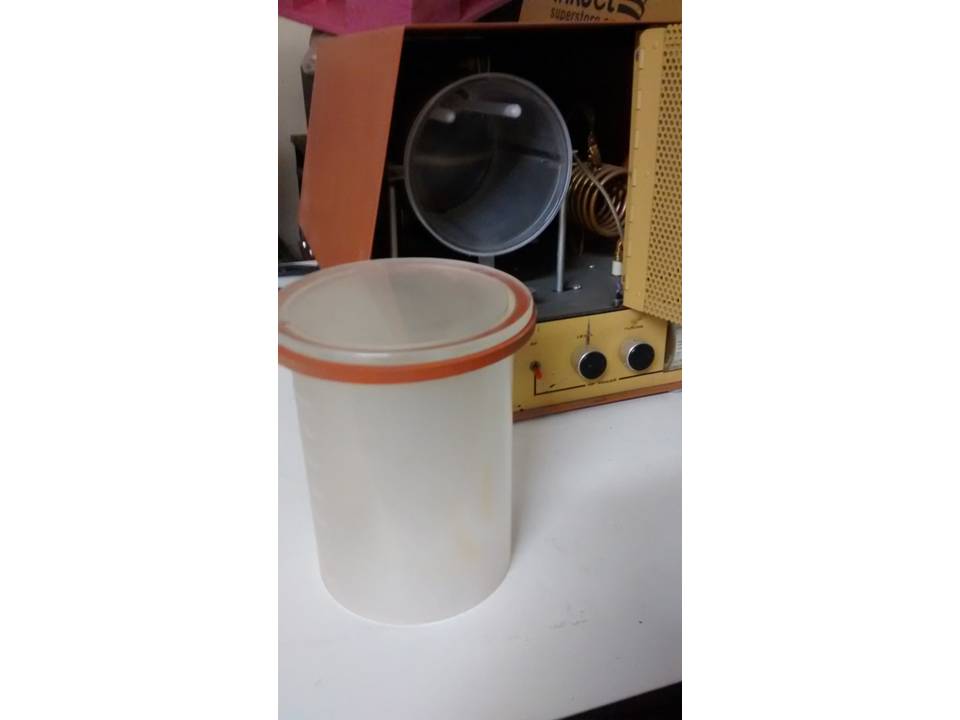

Process Tube Inside Liner Removed View 1

SINGLE

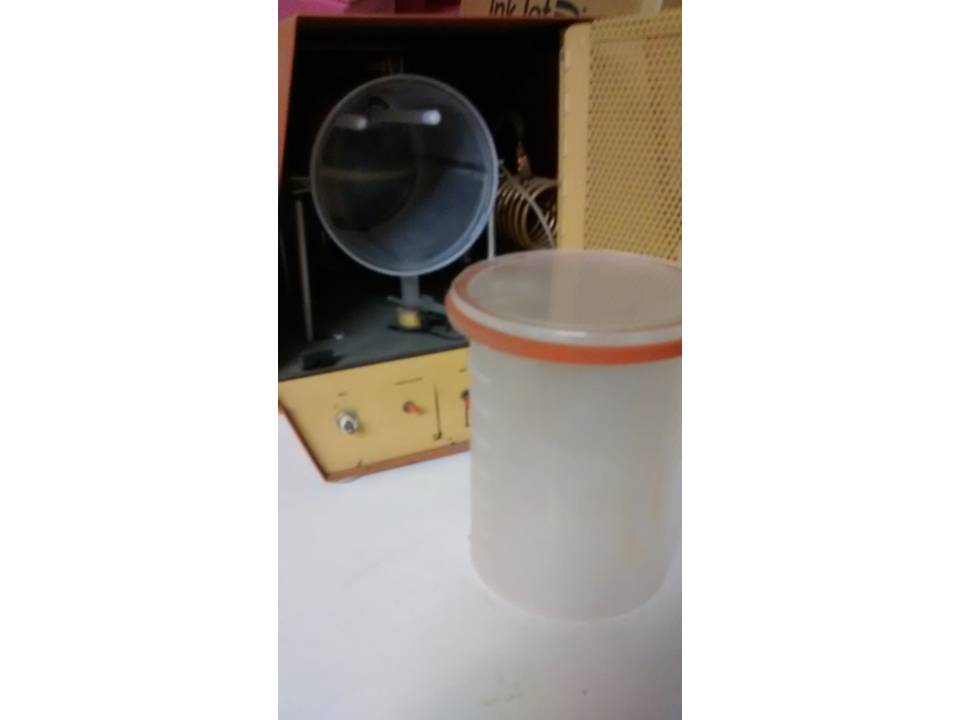

Process Tube Inside Liner Removed View 2

SINGLE

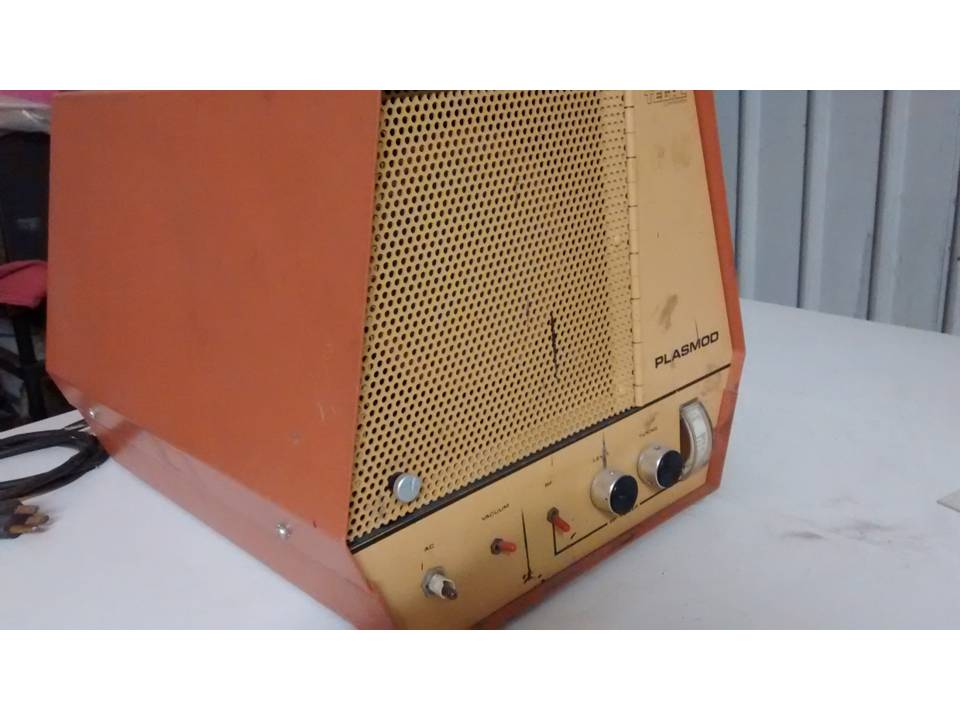

Side View

SINGLE
