|   KLIMSCH Vertical Supercolor Camera for Print Reduction/Enlargement   |

   (Sale Unit SU71-15)


CONDITION

Well maintained Fully Operating Photo Printing Camera Employed for Mask Artwork Generation.

The Klimsch Super-Autocolor is a fully automated and programmable vertical enlarging camera with four built-in lenses covering a reproduction range from 1/2 x reduction to 15x enlargement, or 50% to 1500%.

Specifications

   220 VAC, 15 kW
  Max transparency 32cm X 42cm
   Max Film 70cm X 90cm
  Max Contact Screen 70cm X 90 cm
   Circular Contact Screen 63.5cm

Description

The Klimsch Super Autocolor is a fully automated and programmable vertical enlarging camera with four built-in lenses covering a reproduction range from 1/2 x reduction to 15 x enlargement, or from 50 per cent to 1500 per cent.

The autofocus for all four lenses is achieved with the accurate motor-operated Klimsch spindle system, with fast and slow speed drive. The control elements are located on the vacuum filmplate, and control panel; thus, permitting to operate the camera under simultaneous image observation.

The high-intensity Solartrans xenon box light with stabilized power generator serves as lighting equipment: maximum output 8,000 or 12,000 watts. The amount of air evacuated by the cooling fan (4 to 5 cbm each minute) has to be replaced in the darkroom. When planning the air requirements of the latter, it must further be taken into consideration that each time after turning off the xenon light source, the cooling system automatically keeps on running automatically for another 5 or 6 minutes.

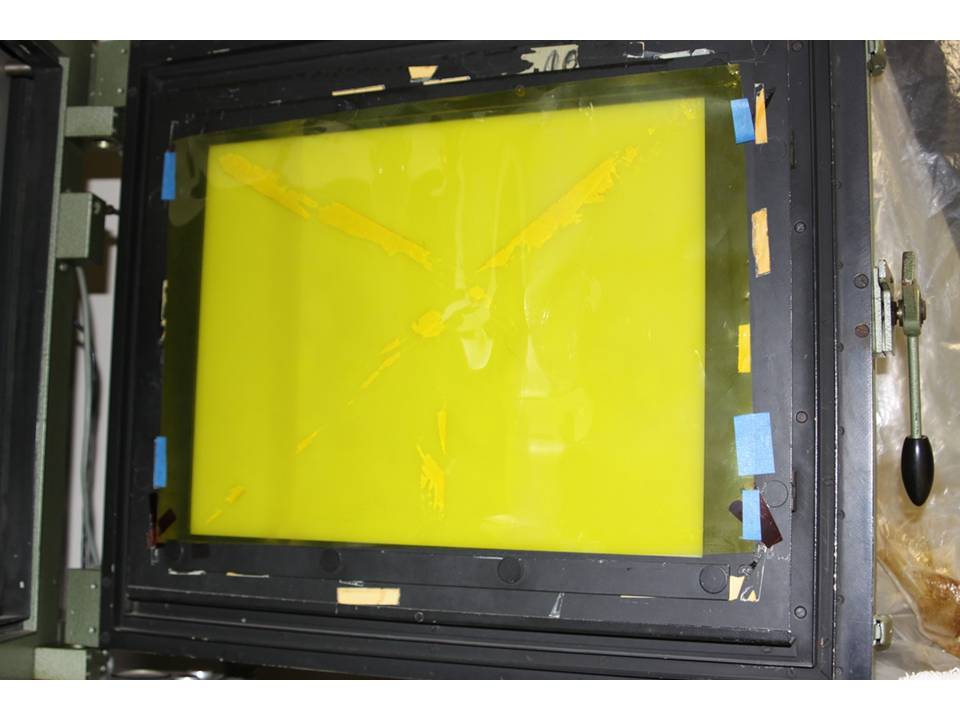

The vacuum filmplate has channel selection for standard film formats and electro¬magnetically controlled retractable register pins, as well as insertable pins for angling of contact screens 63 and 79 cm did. (25" and 32" dia.).

The Camera consists of three units - the main camera and two accessory cabinets.

Spares:

   Multiple camera accessories

Applications:

Camera is ideal for R&D work. Perfect for a startup or university with technical skills to take some technical responsibility and save money over buying new.

The Camera is fully operational.

It is available for inspection by appointments

Pricing negotiable. Make Offers.

(Estimated Weight: 1,300 Kg)

(Estimated Shipping Volume: 8 cubic meter or 260 cub ft)

EQUIPMENT PHOTOS

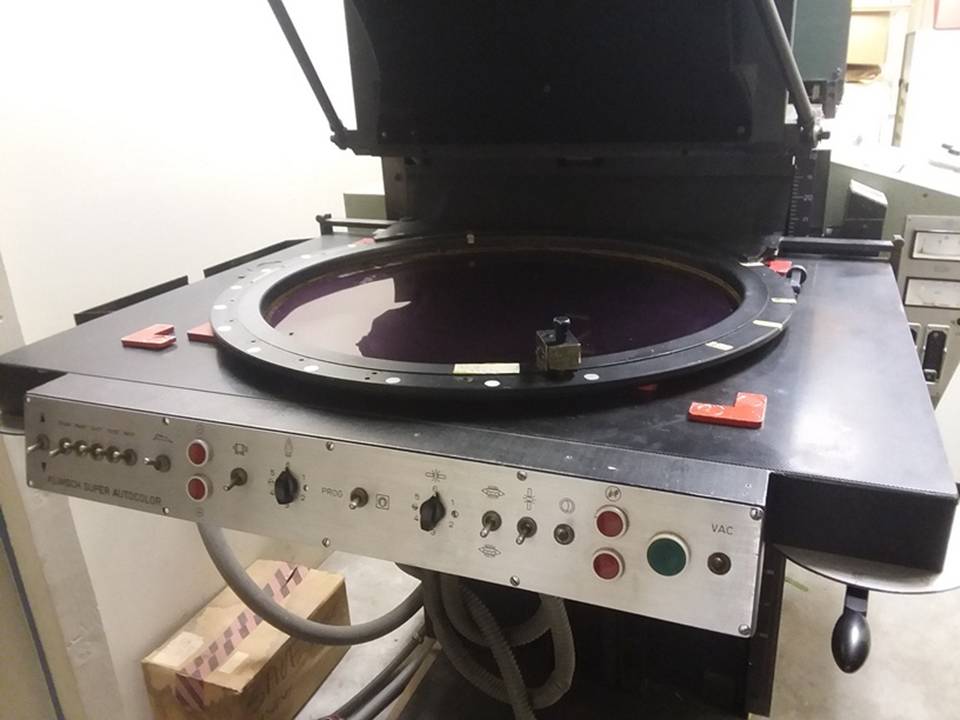

Front Stage with Circular Attachment

SINGLE

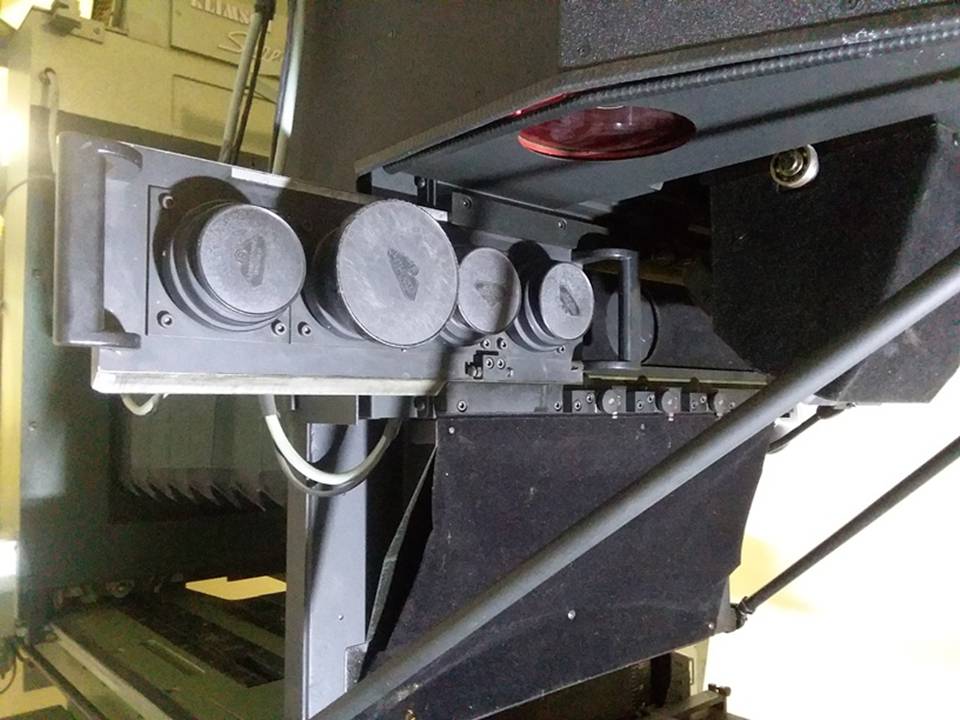

Four Lenses Covered

SINGLE

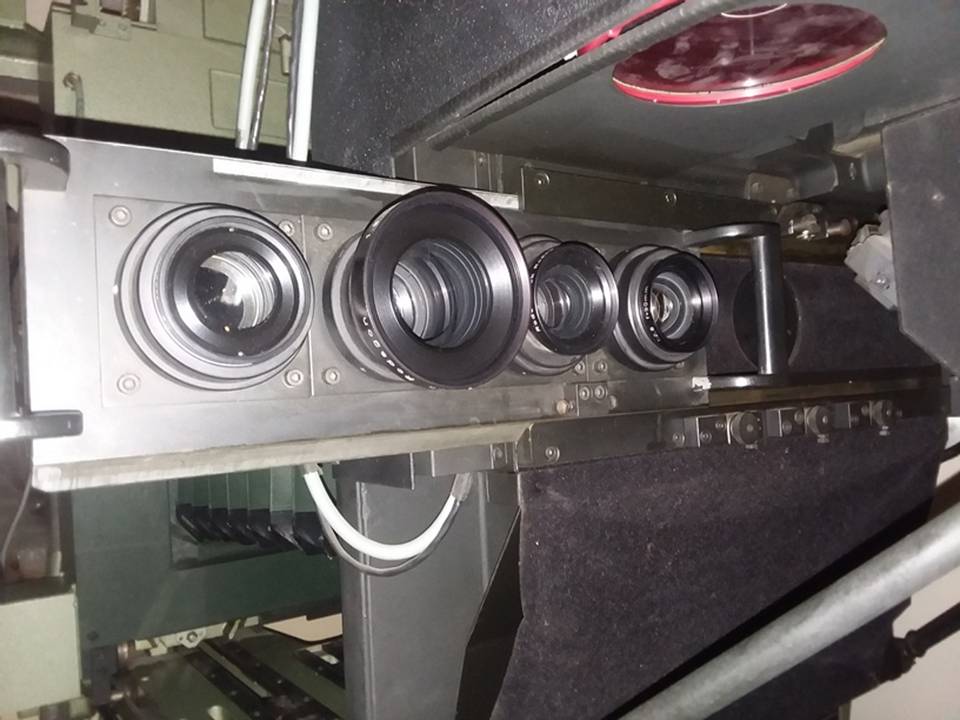

Four Lenses Uncovered

SINGLE

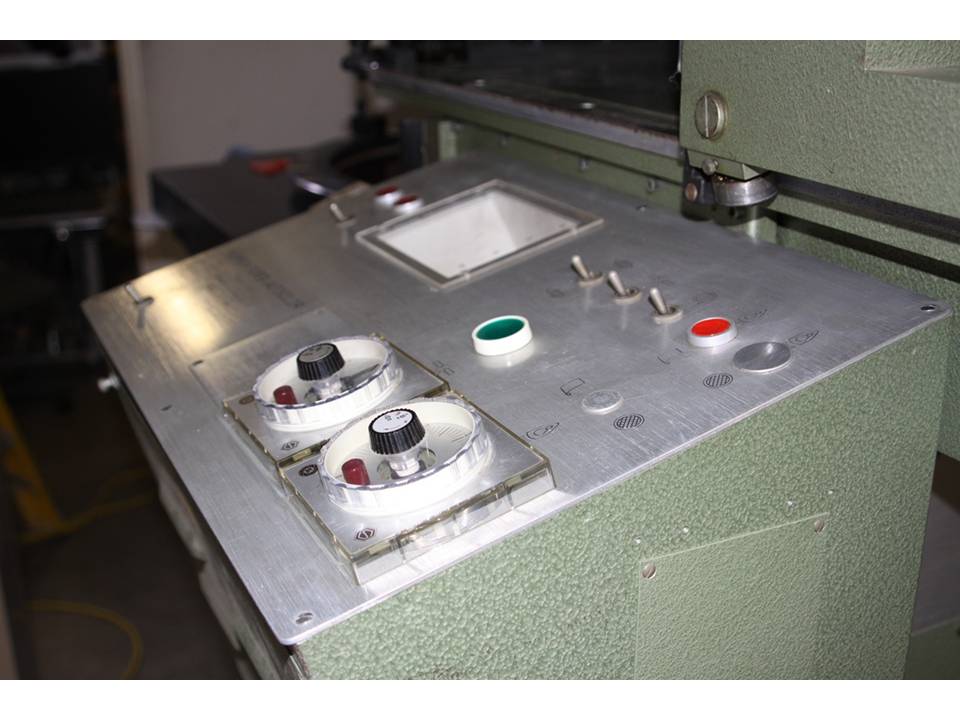

Side Camera Control

SINGLE



Portable Control

SINGLE

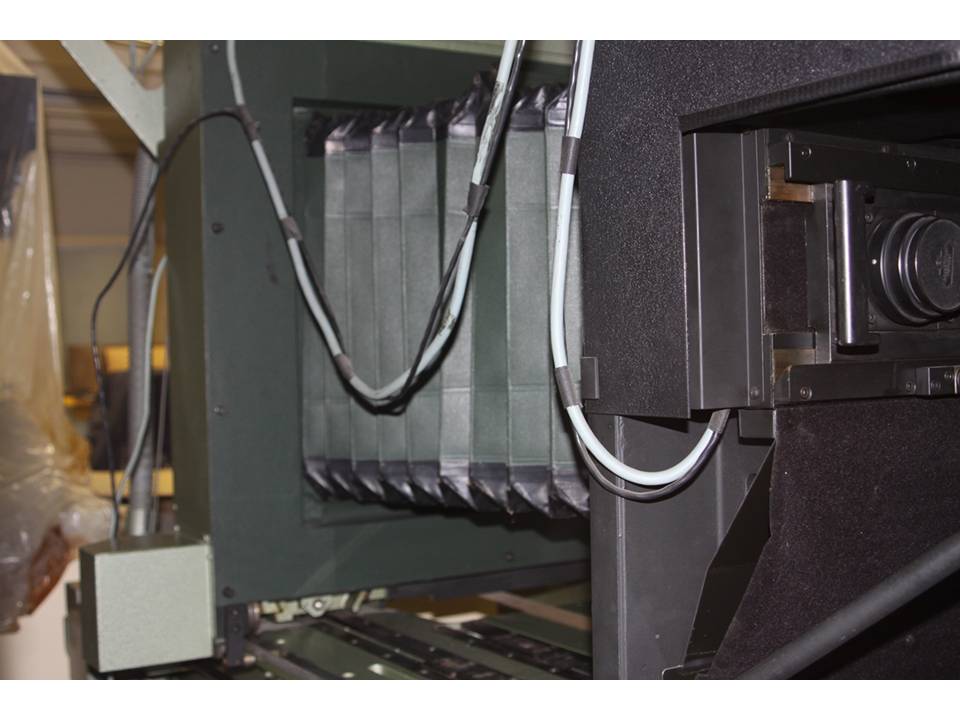

Camera Bellows

SINGLE

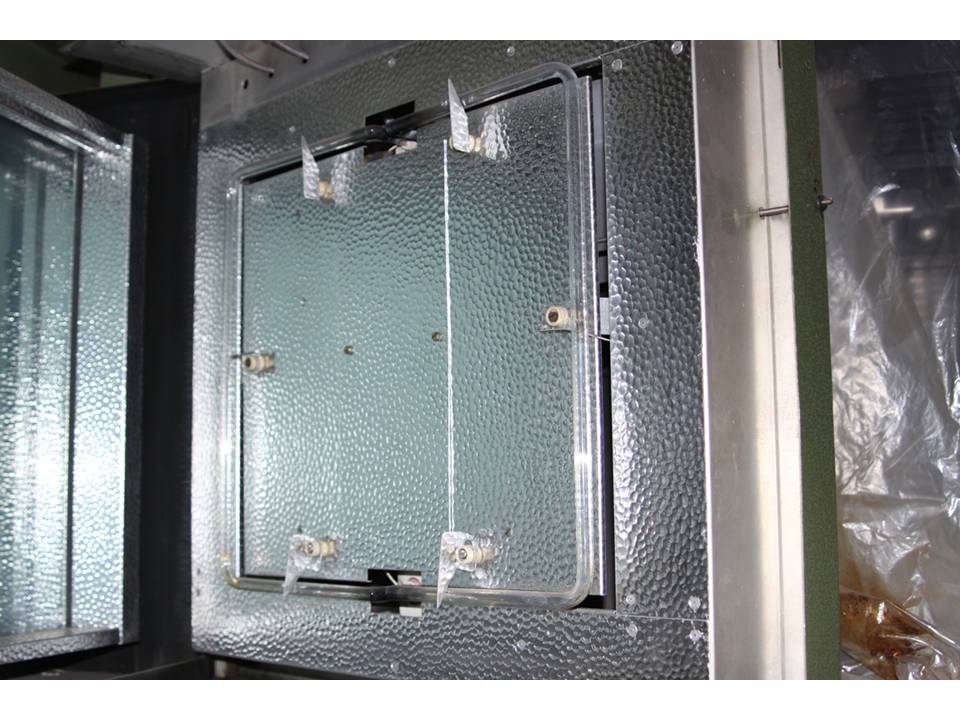

Rear Chamber View 1

SINGLE



Rear Chamber View 2

SINGLE



Rear Chamber View 3

SINGLE

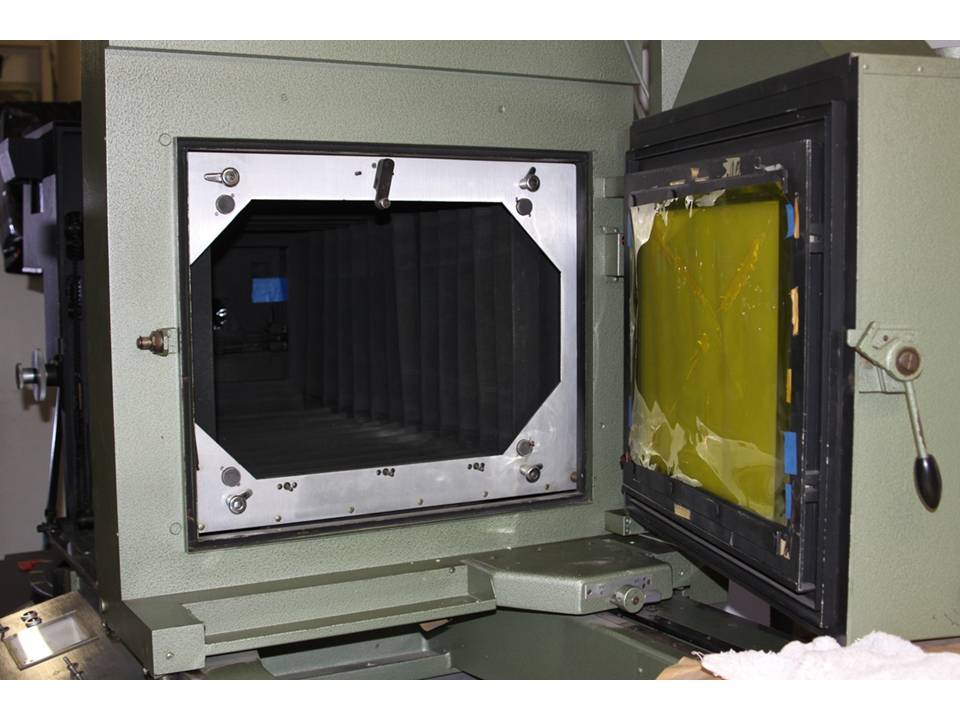

Rear Chamber Closed

SINGLE

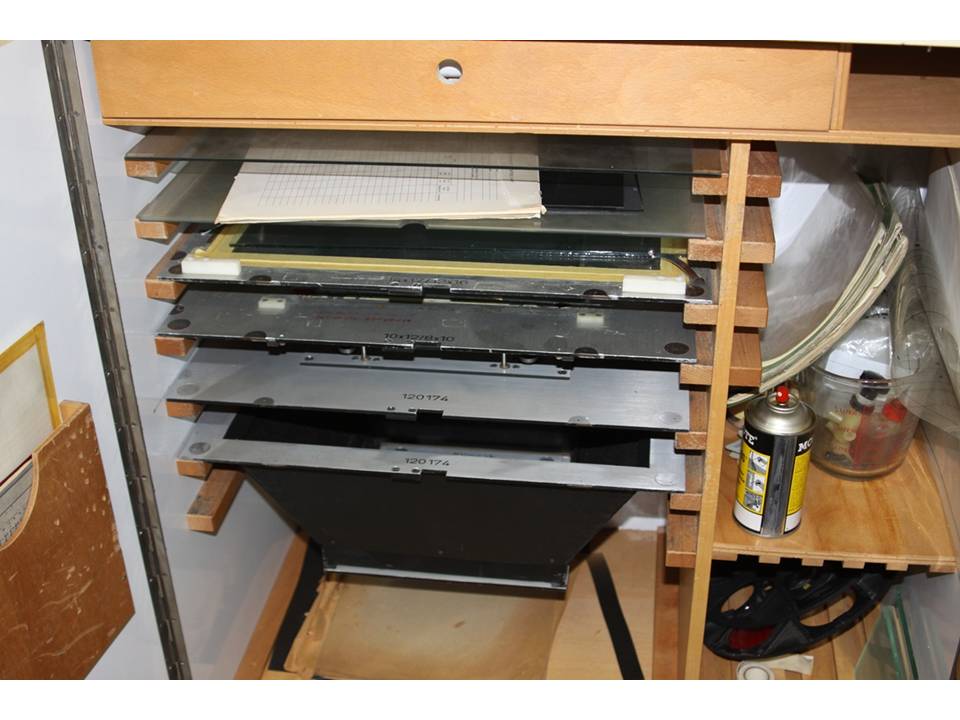

Enlargement Accessories Cabinet

SINGLE

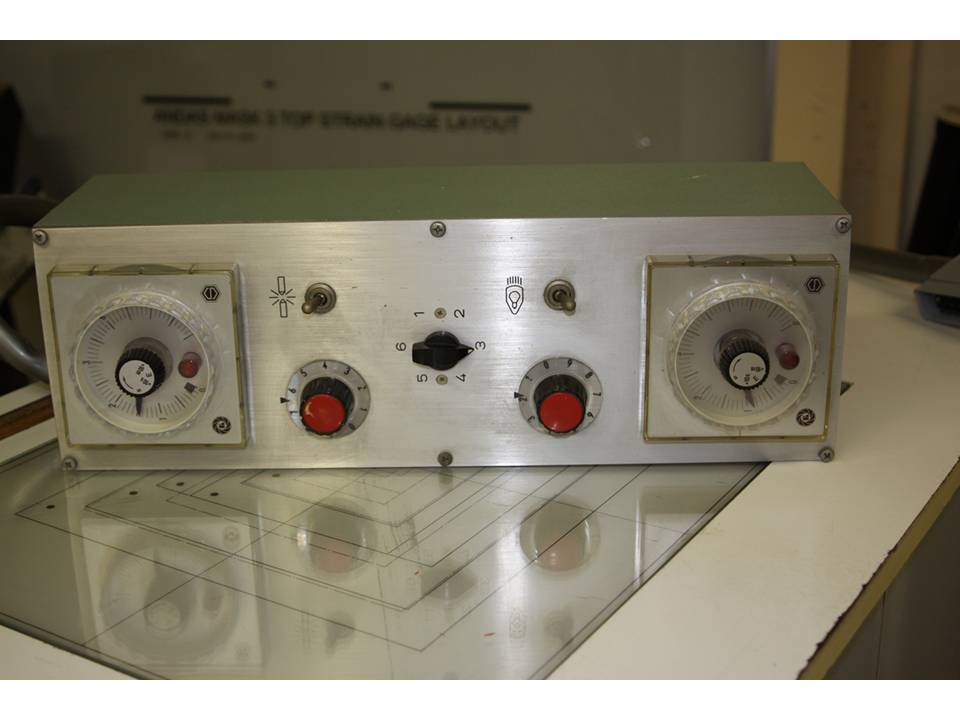

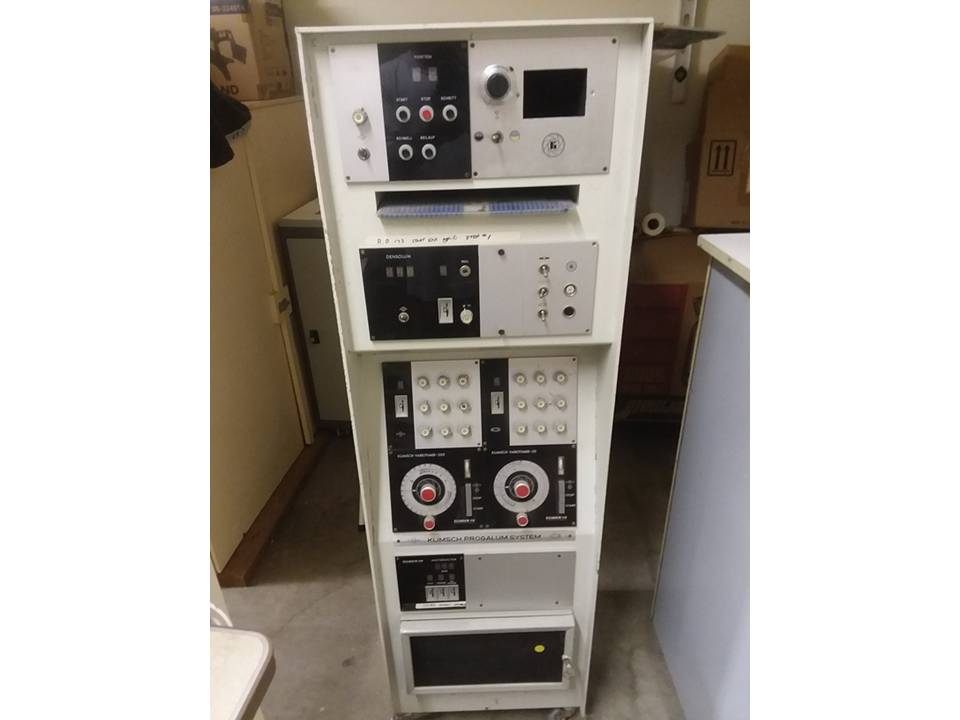

Portable Control Unit

SINGLE
